Install Rear Cast Iron Weights

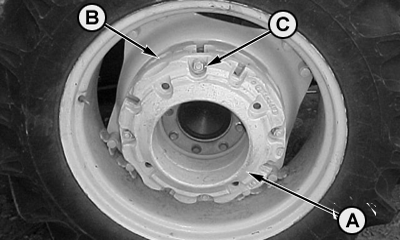

PY1635-UN-17FEB06

A - Additional Weight

B - Weight

C - Weight Holes

CAUTION: Optional cast iron weight weighs 48 kg (106 lb). Handle with care. Use appropriate equipment or have the job done by nearest John Deere dealer.

1. To install additional weight (A) on wheel, it is necessary to remove wheel. (See Wheels, Tires, and Treads section.)

2. Attach first weight to wheel disks.

3. To install additional weights (A), install bolts in previous weight (B). To align bolts with weight holes (C), rotate the added weight.

4. Tighten attaching bolts securely. Tighten again after a few hours service. Check tightness regularly.
