Driving Tractor on Roads

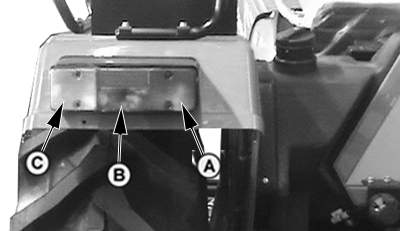

PY4883-UN-22APR05

Right Side Tail Lights Shown—OOS

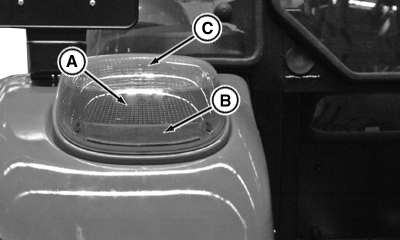

PY21466-UN-16OCT14

Left Side Tail Lights Shown—Cab

A - Tail Light (Red)

B - Reflex Reflector

C - Turning Lights (Amber)

CAUTION: Observe the following precautions when operating on a road.

1. Before operating tractor on highway be sure tail lights (A) and turn signal lights (B) work properly. Install and use Slow Moving Vehicle (SMV) emblems, reflectors, and auxiliary lighting to equipment as required for safety and by local regulations. Clean the SMV emblem for the best visibility.

2. IMPORTANT: Refer to Lights section for detailed descriptions of lighting operations and functions.


   PY18499-UN-22AUG14

   Turn Signal Switch — OOS

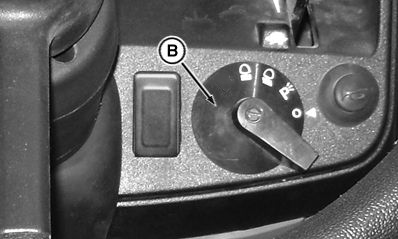

   PY27560-UN-02MAR16

   Light Switch Knob — OOS

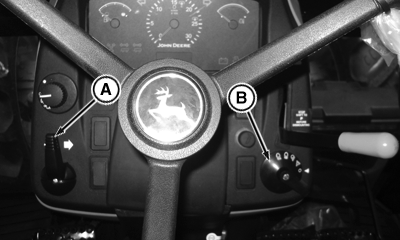

   PY16193-UN-10SEP12

   Cab Shown

   A - Turn Signal Switch

   B - Light Switch

   Turn light switch (B) to warning, full beam headlights, or low beam headlights position. Never use bright lights which are visible from the rear. Always dim headlights before meeting another vehicle. Keep headlights properly adjusted.

---




3. Use turn signals when turning. Be sure to return turn signal switch (A) to center position after turning.

4.
   PY16020-UN-27DEC12

   Brake Pedals Arm PR and Cab


   APY21557-UN-06JUN20

   Brake Pedals Arm for TSS

   A - Brake Pedal Arm

   Couple brake pedals with brake pedal arm (A) together before driving on a road. Avoid hard applications of brakes.

   NOTE: Floor mat is applicable for 5310,5210,5405 domestic models with TSS transmission.

---




5. Disengage mechanical front wheel drive lever (A) (if Equipped) when transporting on hard surface with the MFWD engaged.


   PY21402-UN-22AUG14

   MFWD Lever — OOS


   PY16591-UN-13AUG12

   MFWD Lever — Cab

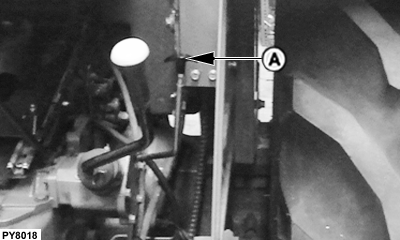

   PY8018-UN-04JUL08

   MFWD Lever- OOS (9x3 TSS Transmission)

   A - MFWD Lever

---




6. Drive slowly enough to maintain safety control always. Slow down for hillsides, rough ground, and sharp turns, especially when transporting heavy, rear-mounted equipment.

7. Before going down a hill, shift to a gear low enough to control speed without using brakes. Never coast down hill.

8. When transporting downhill on icy or graveled grades, be alert for skids which could result in loss of steering control. To decrease chance of skids, reduce speed and be sure that tractor has proper ballast.

9. CAUTION:

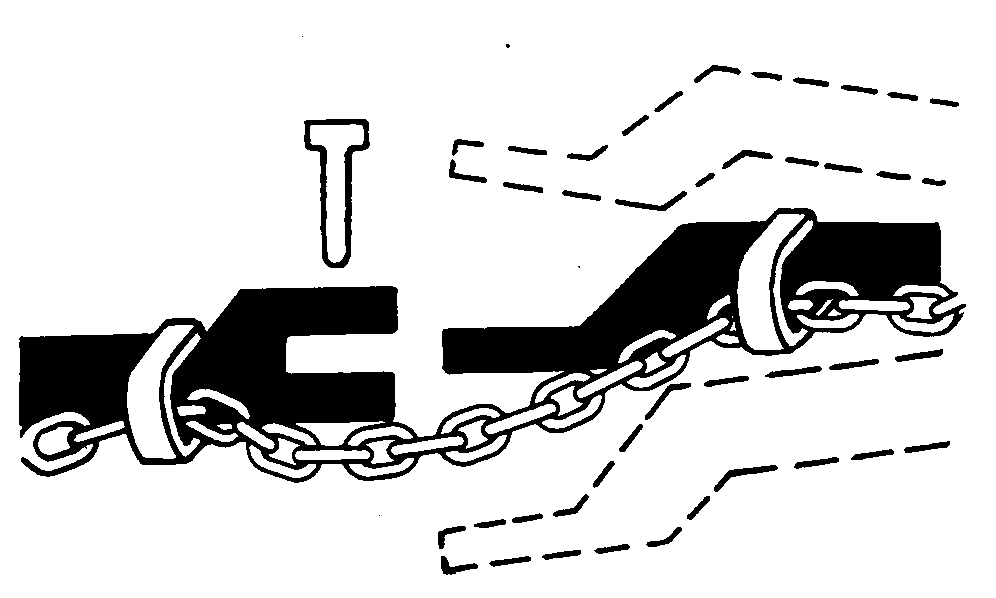

   TS217-UN-23AUG88

   A safety chain helps drawn equipment should it accidentally separate from the drawbar. Using the appropriate adapter parts, attach the chain to the tractor drawbar support or other specified anchor location. Provide only enough slack in the chain to permit turning. See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine. DO NOT use safety chain for towing.

   IMPORTANT: Safety chain is provided for transport only. It must not be used for pulling or towing implements, or other items, not attached to drawbar, or damage to your tractor may result.

   NOTE: Attach trailer brakes (if equipped) and check for proper operation.

   Transporting Towed Loads:

   Lock drawbar pin in place, and use safety chain to help control drawn equipment should it accidentally separate from drawbar while transporting.

---




10. CAUTION:

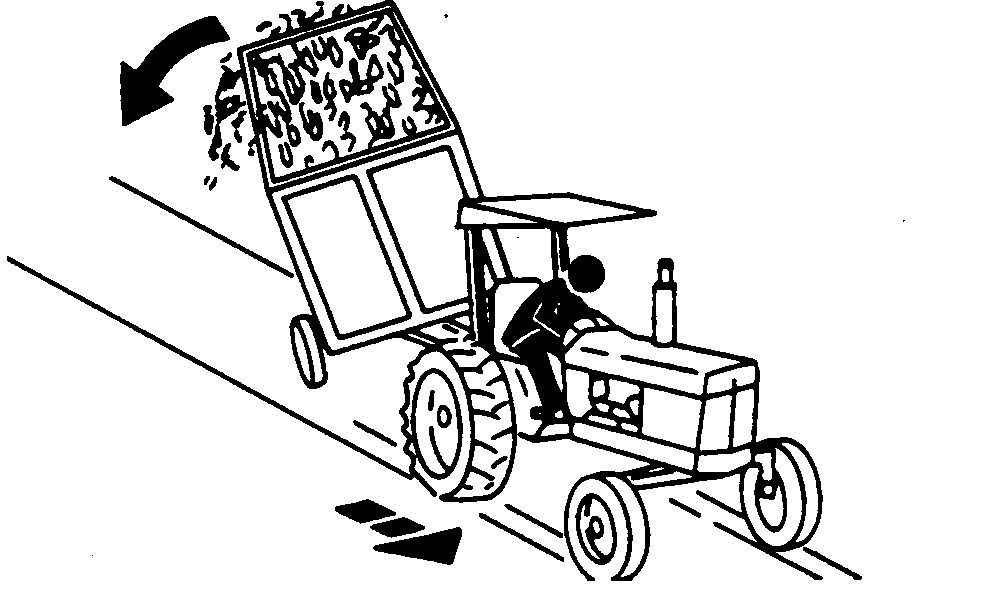

    TS216-UN-23AUG88

    Stopping distance increases with speed and weight of towed loads, and on slopes. Towed loads with or without brakes that are too heavy for the tractor or are towed too fast can cause loss of control. Consider the total weight of the equipment and its load.

    Observe these recommended maximum road speeds, or local speed limits which may be lower:

    If towed equipment does not have brakes, do not travel more than 32 km/h (20 mph) and do not tow loads more than 1.5 times the tractor weight.

    If towed equipment has brakes, do not travel more than 40 km/h (25 mph) and do not tow loads more than 4.5 times the tractor weight.

    Ensure that the load does not exceed the recommended weight ratio. Add ballast to recommended maximum for tractor, lighten the load, or get a heavier towing unit. The tractor must be heavy and powerful enough with adequate braking power for the towed load. Use more caution when towing loads under adverse surface conditions, when turning, and on inclines.

    Use caution when operating tractor at transport speeds. Reduce speed if towed load weighs more than tractor and is not equipped with brakes. (See Towed Equipment operator's manual for recommended transport speeds.)

---




11. Use more caution when transporting towed loads under adverse surface conditions, when turning and on inclines.

12. Heavy towed or rear mounted implements may start swaying in transport. Excessive swaying results in loss of steering control. Drive slowly and avoid quick turns of steering wheel. Refer to your implement operator's manual regarding maximum travel speed limitations.
