Changing Engine Speed

PY22908
PY22908-UN-12DEC14

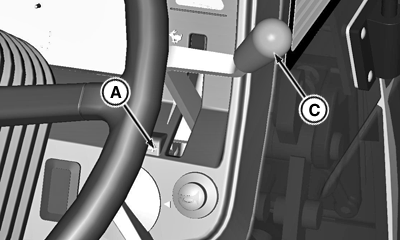

Hand Throttle—OOS Shown, Cab Similar

APY21569
APY21569-UN-10JUN20

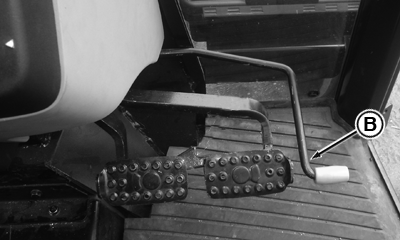

Foot Throttle, Cab

APY21556
APY21556-UN-06JUN20

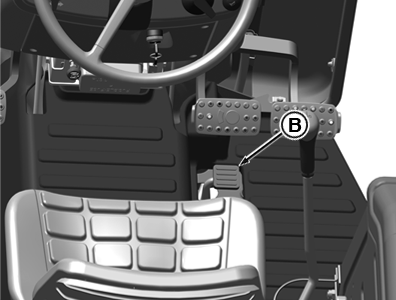

Foot Throttle OOS Shown

A - Fast-Slow Indicator

B - Foot Throttle

C - Hand Throttle

To increase or decrease engine speed, use hand throttle (C). Engine maintains set speed until hand throttle is moved again. Maximum speed is attained with lever all the way up, and minimum speed with lever all the way down, as indicated by the fast-slow indicator (A) on instrument panel.

To temporarily increase engine speed, use foot throttle (B). Engine speed returns to prior speed as soon as foot throttle lever is released.

NOTE: Floor mat is applicable for 5310,5210,5405 model with TSS transmission.

MD36154,00010FB-19-20200608
