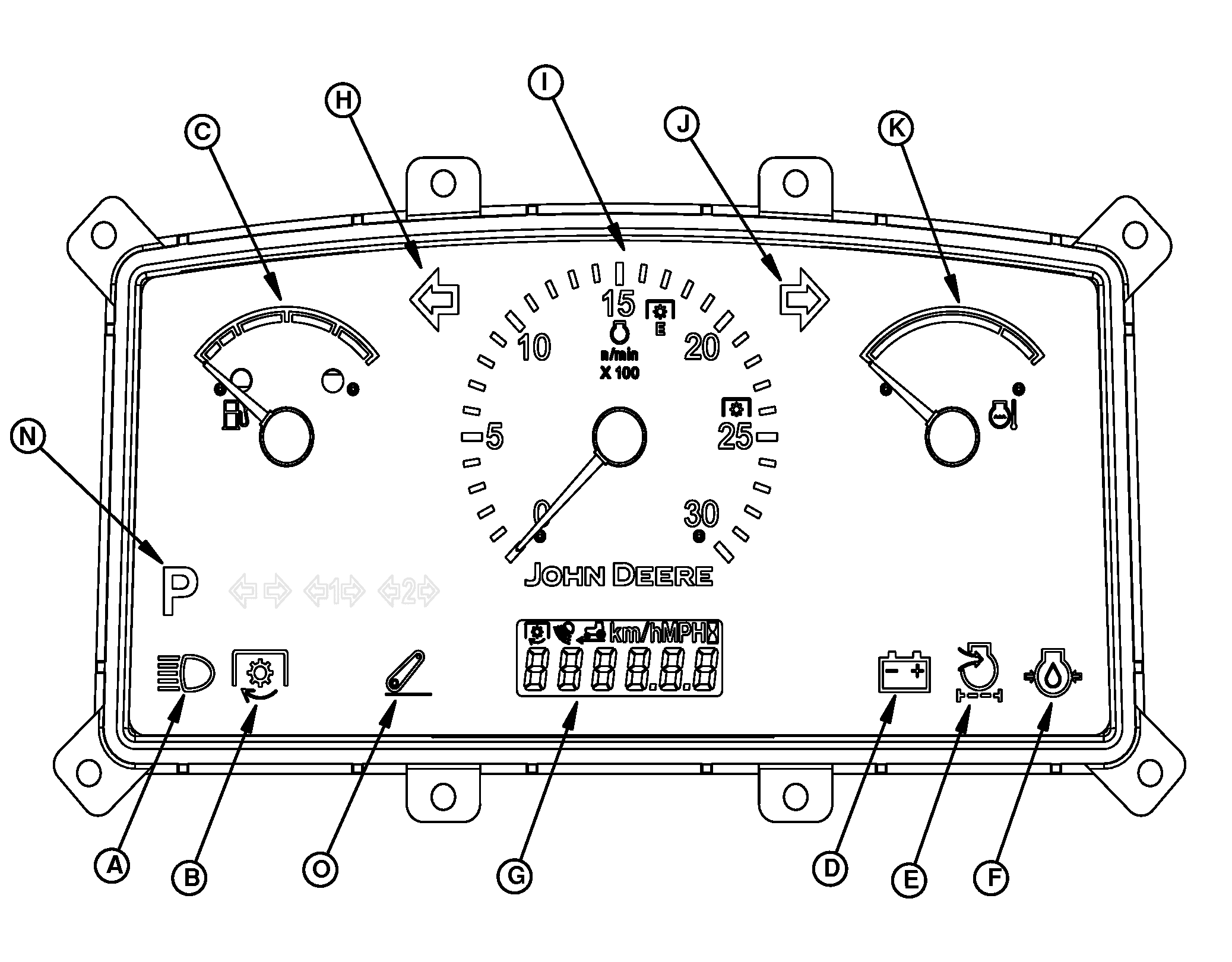

Instrument Panel — (SyncShuttle Transmission) (Domestic Tractor)

APY40114-UN-06NOV20

Instrument Panel (SyncShuttle Transmission)

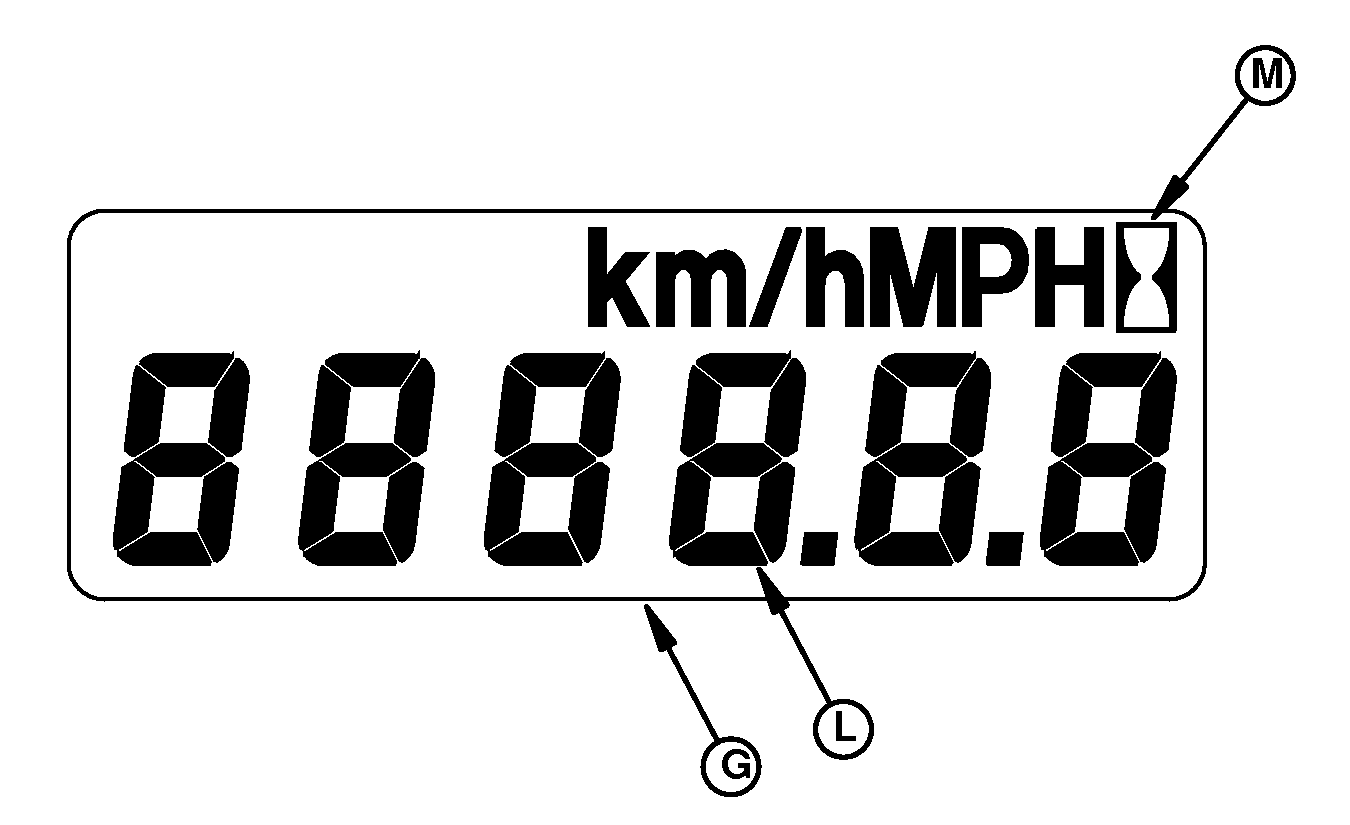

APY40120-UN-01NOV20

A - High Beam Indicator

B - PTO Engaged Indicator

C - Fuel Gauge

D - Battery Charge Indicator

E - Engine Air Cleaner Restriction Indicator

F - Engine Oil Pressure Indicator

G - Information Display

H - Left Turn Indicator

I - Tachometer

J - Right Turn Indicator

K - Coolant Temperature Gauge

L - Vehicle Information Display

M - Hour Meter Icon

N - Park Brake Indicator

O - QRL Indicator
