Instrument Panel (PowrReverser™ Tractors) Domestic

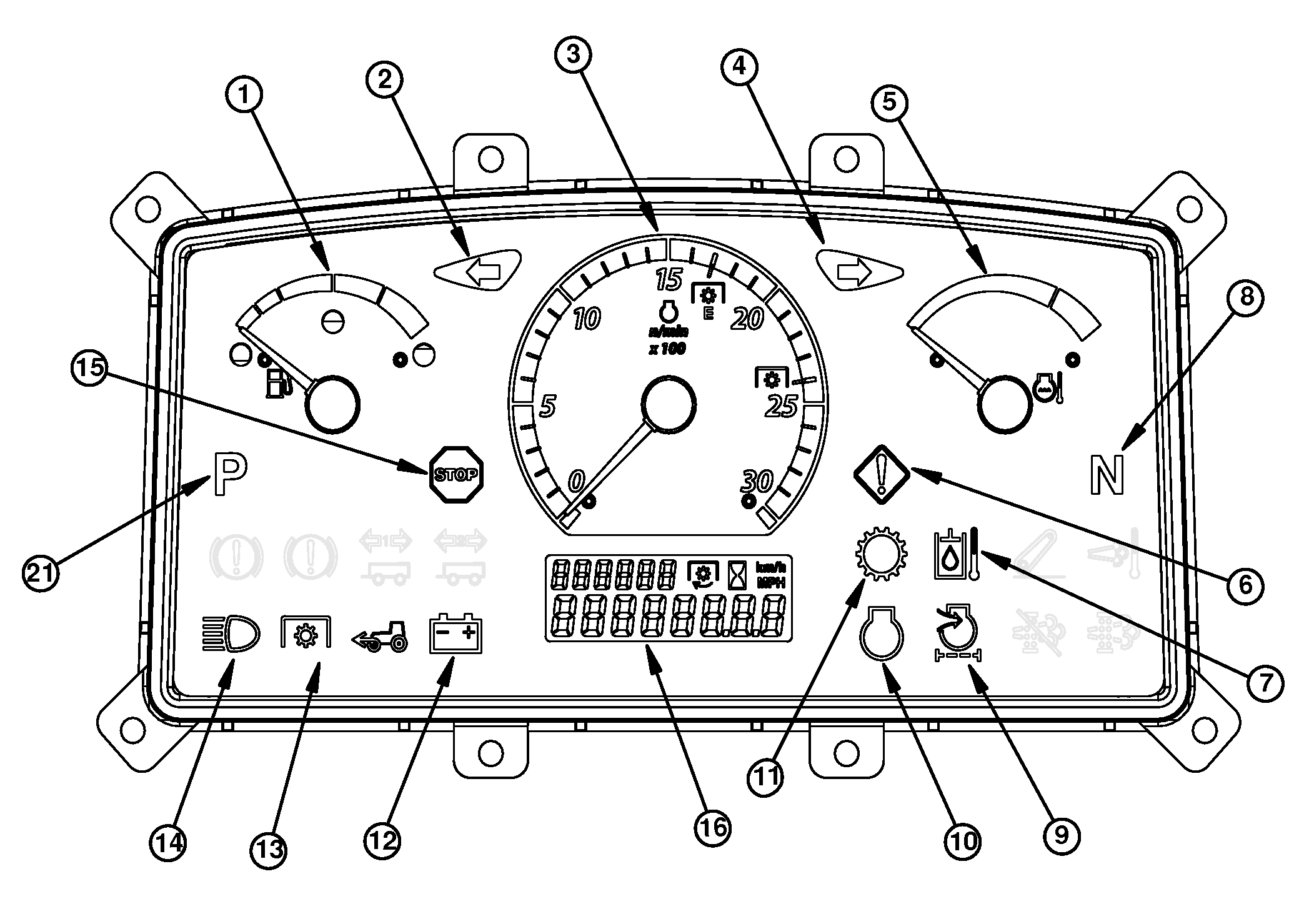

APY40112-UN-07DEC20

Instrument Panel (PowrReverser Tractors)

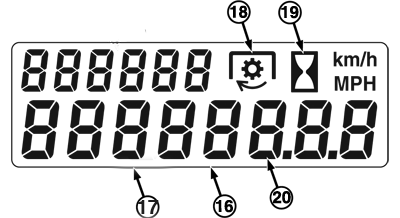

APY40187-UN-06NOV20

1 - Fuel Level Gauge

2 - Left Turn Indicator

3 - Tachometer

4 - Right Turn Indicator

5 - Engine Coolant Temperature Gauge

6 - Service Alert Indicator

7 - Hydraulic Oil Temperature Indicator

8 - Neutral Indicator

9 - Engine Air Cleaner Restriction Indicator

10 - Engine Information Indicator

11 - Transmission Information Indicator

12 - Battery Charge Indicator

13 - PTO Engaged Indicator

14 - High Beam Indicator

15 - Engine STOP Indicator

16 - Vehicle Information Display

17 - Hour Spent

18 - PTO Icon

19 - Hour Meter Icon

20 - Active PTO Speed and Vehicle Speed

21 - Park Brake

NOTE: Hour Meter/Ground Speed (LCD Digital) (19) displays hours when the tractor is not moving. When the tractor is moving, display switches to ground speed. When the tractor is stopped, display changes back to hours.
