Recommended Engine Speeds and Operating Procedures (Domestic Tractor)

APY40127-UN-07DEC20

Instrument Cluster — PowrReverser™

APY40128-UN-06NOV20

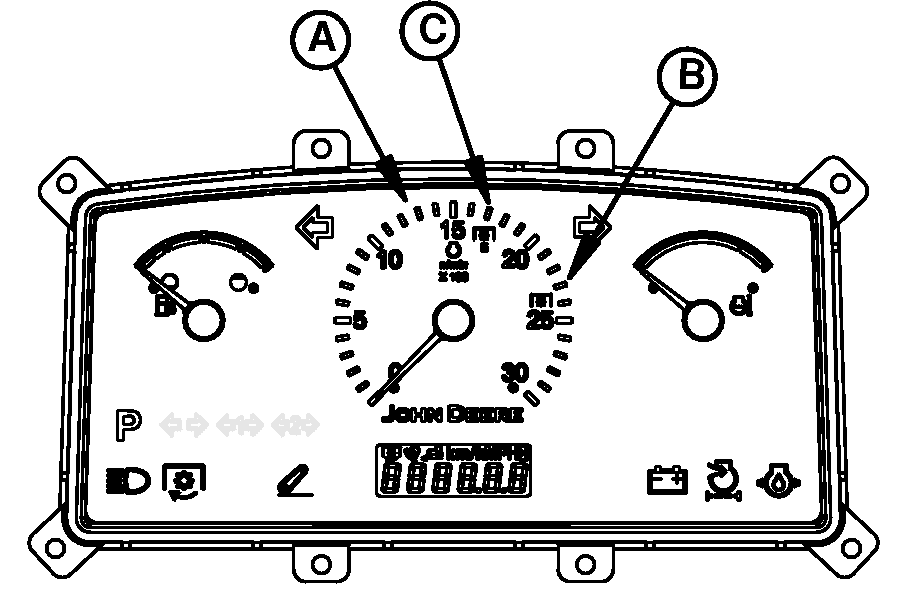

Instrument Cluster — Sync Shuttle

A - Tachometer

B - 2376 rpm Mark (540 PTO rpm)

C - 1705 rpm Mark (540E PTO rpm)

Warming Up Engine

Do not place tractor under full load until it is properly warmed up.

1. Idle engine at 1200—1500 rpm for several minutes.

2. Run engine at about 1900 rpm and under light load until engine reaches normal operation condition.

Avoid Idling Engine

Allowing engine to idle at low rpm uses fuel inefficiently, and can cause a build-up of carbon in the engine.

If tractor must be left with the engine running more than three or four minutes, minimum engine speed should be 1200 rpm.

Observe Engine Work and Idle Speeds

Slow idle speed should be 800—850 rpm. At light or no load, full throttle speed will increase to 2575—2600 rpm.

Normal working speed is 1600—2400 rpm rated speed. Within these limits engine can be put under full load.

For correct PTO speed, run engine at:

• 2376 rpm for standard 540 rpm operation.
• 1705 rpm for economic 540 rpm operation.

Restarting Stalled Engine

Should the engine stall when operating under load, depress clutch and restart it immediately to prevent abnormal heat build-up and continue with normal operation, or operate at slow idle for one or two minutes before stopping.
