Operating Tractor PTO — SyncShuttle, Cab (Domestic Tractor)

1. NOTE: If PTO control lever is engaged engine will not start.


   PY16163-UN-25JUN12


   PY16190-UN-04SEP12


   APY40136-UN-06NOV20

   A - PTO Lever

   B - Hand Throttle

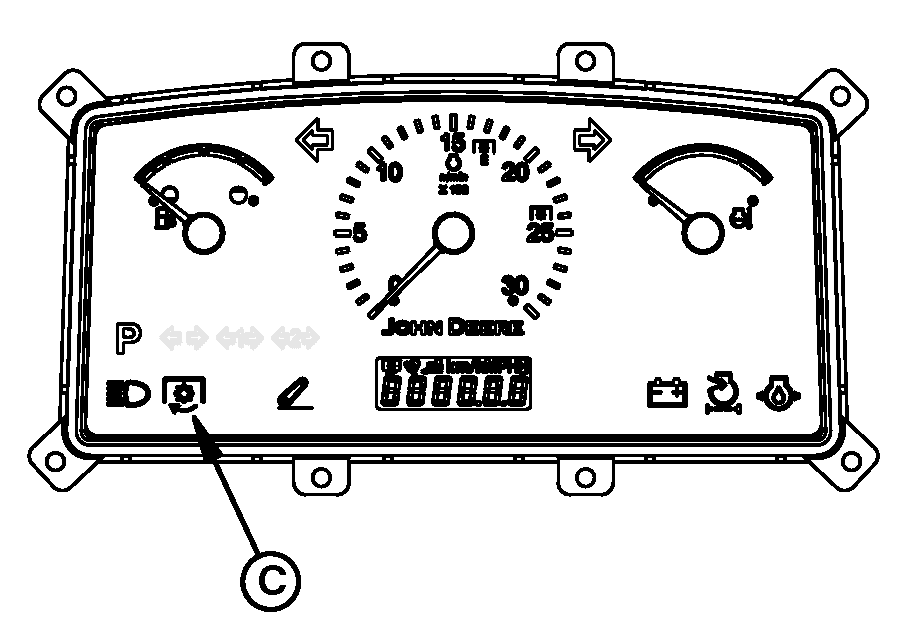

   C - PTO Indicator Light

   Depress clutch pedal, start engine, and push hand throttle (B) forward until the engine tachometer indicates PTO rated speed of 2376 rpm. Move PTO lever (A) forward, to engage PTO. Indicator light (C) turns on when PTO is engaged.

---




2. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting, or cleaning PTO-driven implement.

   To avoid entanglement with rotating the shaft, always disengage PTO when not in use.

   Pull the PTO lever (A) back to disengage PTO.
