Working With Speed/Hour Meters (Domestic Tractor)

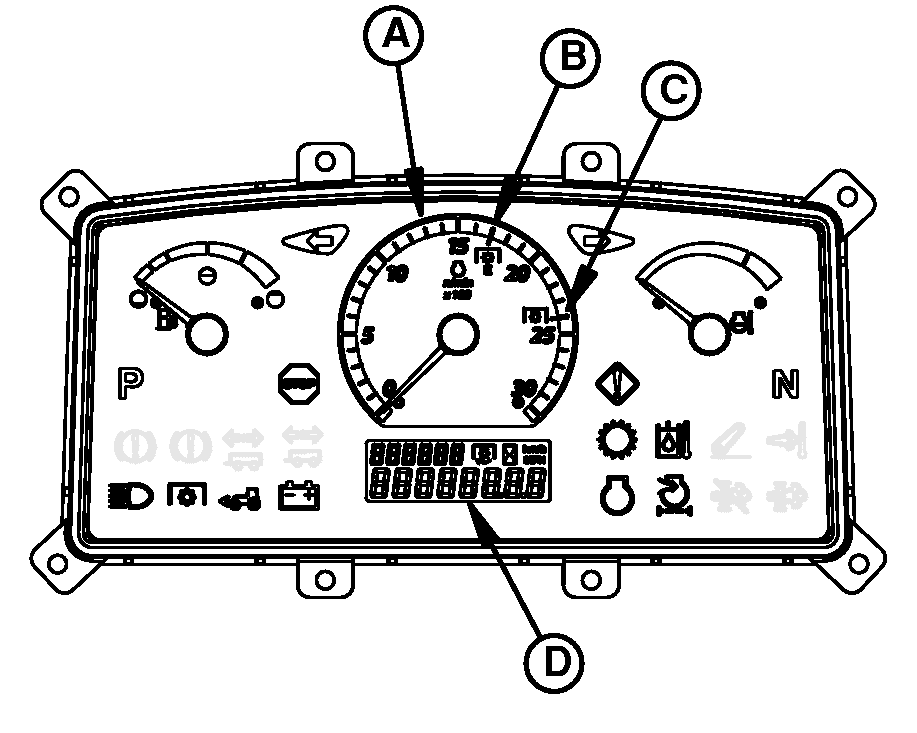

APY40129-UN-07DEC20

PowrReverser™

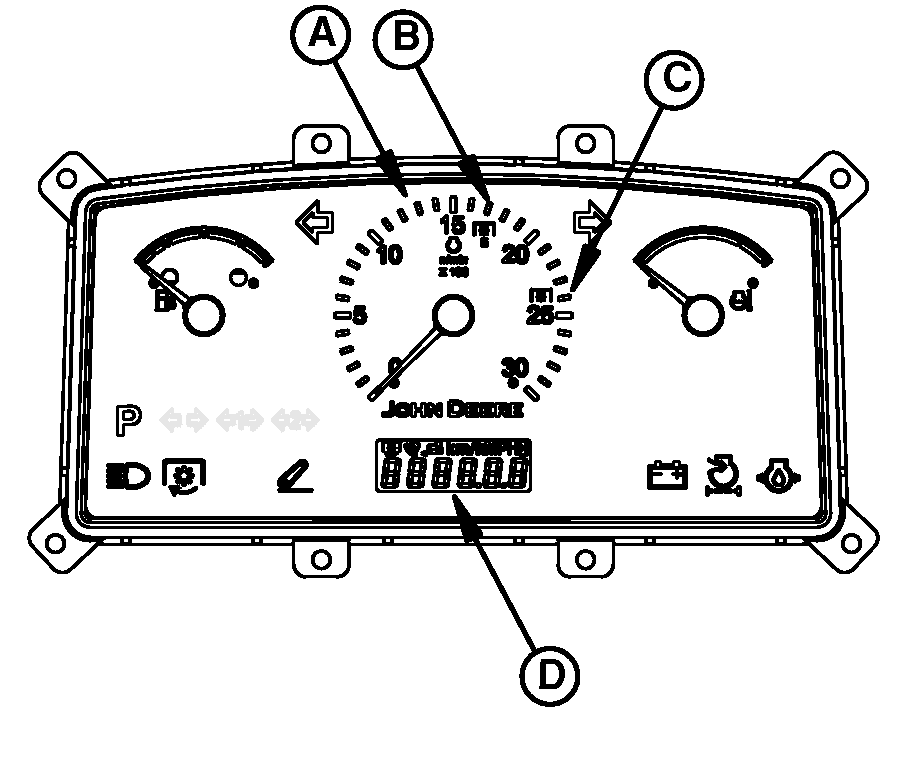

APY40130-UN-06NOV20

Sync Shuttle

A - Tachometer

B - 1705 rpm Mark

C - 2376 rpm Mark

D - Hour Meter

Tachometer (A) shows engine revolutions per minute, read in hundreds.

For standard 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2376 rpm mark (C).

For economic 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 1705 rpm mark (B).

Hour meter (D) shows hours of operation in full hours and tenths.

NOTE: Hour Meter/Ground Speed (LCD Digital) (D) displays hours when tractor is not moving. When tractor is moving, display switches to ground speed. When tractor is stopped, display changes back to hours.
