Using Flood Lights

PY15625-UN-24DEC12

APY40192-UN-06NOV20

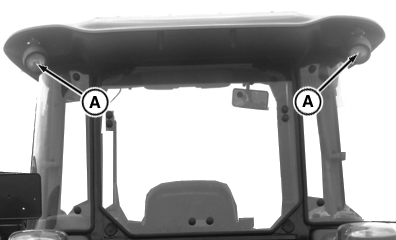

A - Rear Floodlights

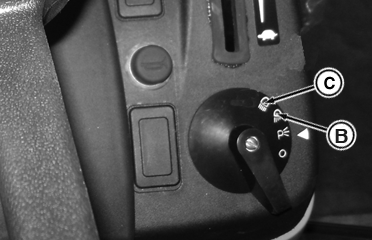

B - Flood Lights Position

C - High Beam Headlights

CAUTION: When operating on a road, move light switch to either high beam lights position- (C). Never use flood lights when transporting on roads. Clear, bright lights at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

NOTE: Flood lights can be adjust freely by hand.

Flood light position (B) is for field work only. Do NOT use when driving on public roads. Flood lights are on when switch is turned to flood light position (B).
