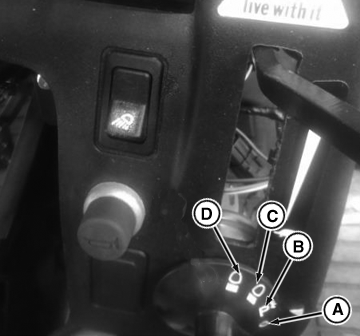

Light Switch Positions
APY40191-UN-06NOV20
Cab Shown
A - Lights Off
B - Parking Lights
C - Low Beam Headlights
D - High Beam Headlights
Tractor light switch has five positions:
|
Switch Position |
Position Lights |
Tail Lights |
Flood Lights |
Head Lights |
|---|---|---|---|---|
|
A—Off |
Off |
Off |
Off |
Off |
|
B—Position |
On |
On |
Off |
Off |
|
C—Low Beam |
On |
On |
Off |
On—Low Beams |
|
D—High Beam |
On |
On |
Off |
On—High Beams |

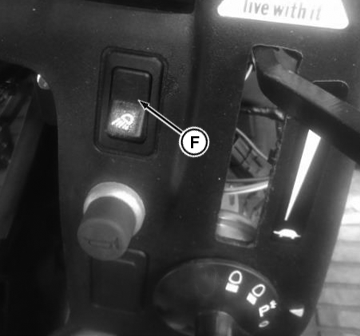

Work Lamp Switch
APY40193-UN-06NOV20
F - Work Lamp Switch
|
MD36154,000137E-19-20201106 |
