High Beam Indicator

PY17645-UN-16DEC14

Sync Shuttle Only

PY17644-UN-30SEP13

PowrReverser™ Only

APY40195-UN-06NOV20

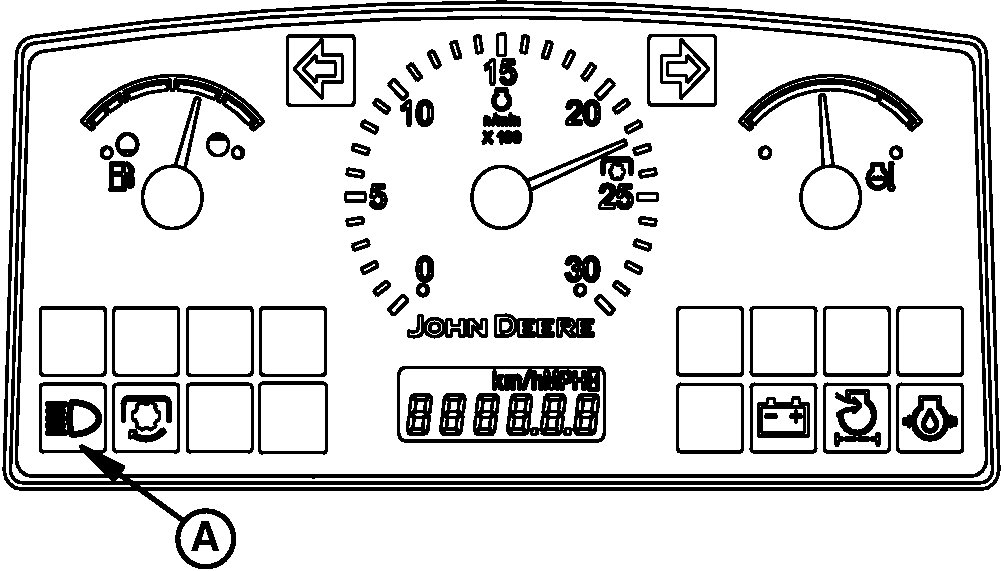

A - High Beam Indicator

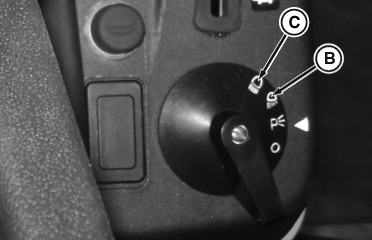

B - Flood Lights Position

C - High Beam lights Position

High beam indicator (A) should glow with key in ON or OFF position and light switch in following positions:

• High beam lights position (C)
• Flood lights position (B)
