Use Differential Lock

PY21401-UN-22AUG14

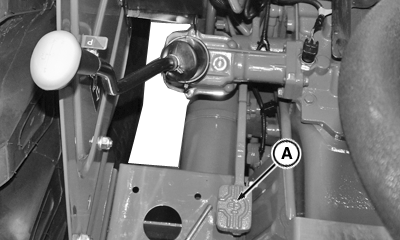

OOS

APY46944-UN-18FEB21

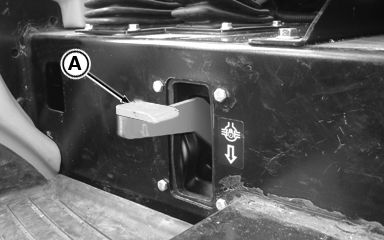

Cab

A - Differential Lock Pedal

CAUTION: Do not operate tractor at high speed or make turn with differential lock engaged.

IMPORTANT: To prevent damage to drive train, do not engage differential lock when one wheel is spinning and the other is stopped.

When one wheel starts to lose traction, engage differential lock by depressing pedal (A) down. Tractor wheels must be turning before engaging differential lock. If possible, engage differential lock before entering conditions where tires slips.

Unequal traction keeps the lock engaged. When traction equalizes, lock disengage itself by spring action. If lock does not disengage, depress one brake pedal and then the other.

If tires repeatedly slip, then get traction, and then slip again, hold pedal in the engaged position.
