Replace Fuel Filter (Rotary Pump)

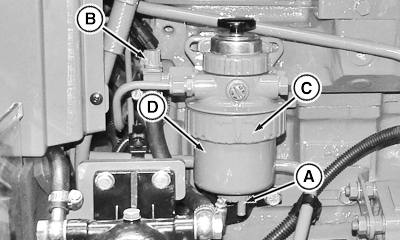

PY21440-UN-22AUG14

A - Drain Port

B - Fuel Shut Off

C - Retaining Ring

D - Fuel Filter

Service Interval—500 Hours

1. NOTE: When loader is installed, servicing of fuel filter will be easier if fuel filter relocation kit is used.

   Connect a drain line to drain port (A) and place a suitable container under drain.

2. Close fuel shutoff (B).

3. Loosen drain port and drain fuel from filter.

4. Loosen retaining ring (C) and fuel filter (D) and filter seal.

5. Discard old filter. Inspect filter seal for cracks, breaks, or other signs of leaking. Replace as necessary.

6. Install new filter and seal. Tighten retaining ring until it snaps into place. Do not overtighten.

7. Bleed fuel system. (See procedure in this section.)
