Connect Single-Acting Cylinder

PY16040-UN-26JUN12

PY21451-UN-22AUG14

SCV I Lever — OOS

PY17981-UN-11JUN14

SCV I Lever — Cab

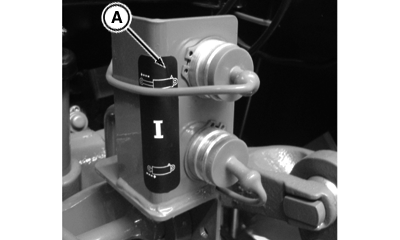

A - SCV I Outlet

B - SCV I Control Lever

In order for lever (B) to work properly, a single-acting cylinder should be connected only to SCV I Outlet in the extend position (top coupler) (A).

IMPORTANT: Volume of oil required to extend cylinder must not lower transmission-hydraulic oil level. Check oil level with cylinder fully extended. (See Transmission-Hydraulic System )

Push SCV I control lever full forward to use “float” position to lower single-acting cylinder.

“Float” position allows a cylinder to extend and retract freely and uses no engine power.
