Tighten Bolts— Front Axle

PY4526-UN-21JAN05

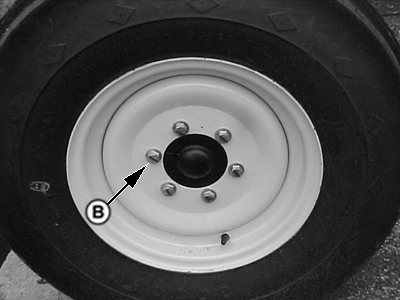

B - Disk-to-Flange

Tighten bolts in the following locations to specifications:

Item	Measurement	Specification
Front Axle—Axle-to-Knee Bolts	Torque	480 Nm (350 lb-ft)
Front Axle—Disk-to-Flange Bolts	Torque	210 Nm (130 lb-ft)
