Tighten Bolts—Adjustable Front Axle (If equipped)

PY5021-UN-21MAY05

PY5844-UN-26NOV18

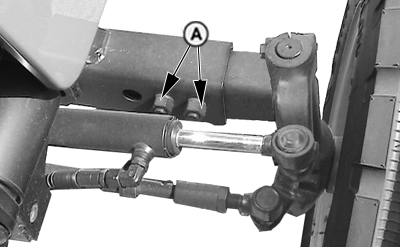

A - Axle-to-Knee

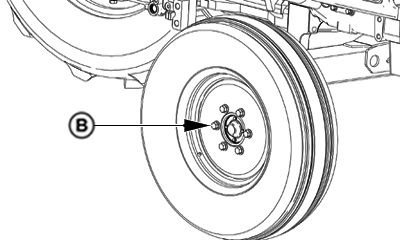

B - Disk-to-Flange

Tighten bolts in the following locations to specifications:

Item	Measurement	Specification
Adjustable Front Axle—Axle-to-Knee Bolts	Torque	480 N·m (354 lb.-ft.)
Adjustable Front Axle—Disk-to-Flange Bolts	Torque	210 N·m (155 lb.-ft.)
