Adjust Front Axle Tread Width

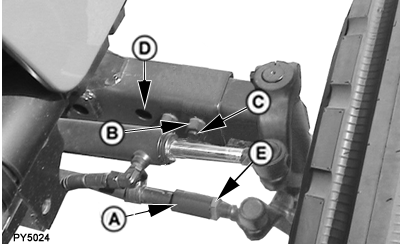

PY5024-UN-18MAY07

A - Tie Rod

B - Axle Nut (4 used)

C - Bolts (4 used)

D - Companion hole

E - Tie Rod Cap Screw

1. IMPORTANT: DO NOT place jack under engine oil pan.

   Jack up front end of tractor.

2. When making large tread adjustments it may be necessary to change the tie rod length (A) before or during axle adjustments. See Check and Adjust Toe-In for your axle type.

3. Remove four nuts (B) and cap screws (C) from front axle (2 on each side).

4. Slide axle knees to desired position. Both sides should be adjusted to same spacing. Nut and bolts may have to be moved to the companion holes (D) in some settings.

5. Reinstall axle nuts (B) and bolts (C) on each side. Tighten bolts to specification.

   Item	Measurement	Specification
   Front Axle Bolts	Torque	300 Nm (221 lb.-ft.)

6. Set toe-in. See Check and Adjust Toe-In for your axle type.
