Disconnect Cylinder Hoses

X9811-UN-23AUG88

PY5796-UN-08JUN06

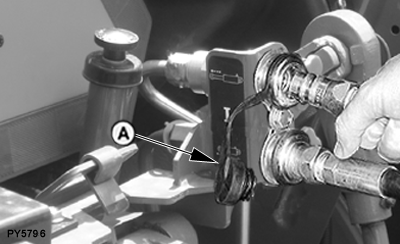

A - Dust Plug

1. If possible, RETRACT the remote cylinder as much as possible to protect the cylinder rod from damage.

2. CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Relieve hydraulic pressure by moving the control lever/joystick through all the positions. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury must refer a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   With as much hydraulic pressure relieved as possible from hoses, pull hoses from couplers.

3. Make sure dust plugs (A) for receptacles and dust caps for hoses are clean, then install dust plugs (A).
