Tractor Controls — Right-Hand Controls OOS (PowrReverser™ Tractors)

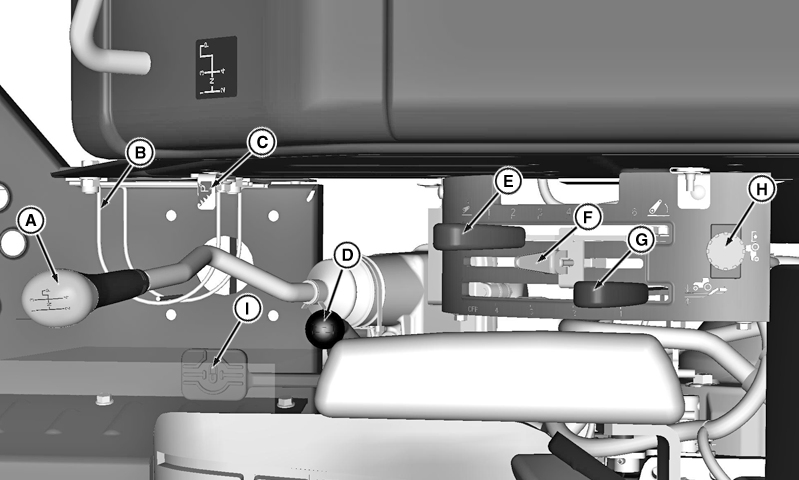

PY18490-UN-22AUG14

Right-Side Controls

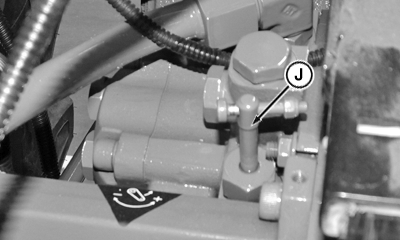

PY21421-UN-22AUG14

Rate-Of-Drop Knob - Rear Side of Seat

A - Gear Shift Lever

B - Water Bottle Holder

C - Park Pawl Position

D - SCV I Lever

E - Rockshaft Position Control Lever

F - Rockshaft Position Control Stop Knob

G - Rockshaft Draft Control Lever

H - Electro-Hydraulic PTO Switch

I - Differential Lock Pedal

J - Rockshaft Rate-Of-Drop Knob
