Before Starting the Engine –– OOS (PowrReverser™)

TS220
TS220-UN-15APR13

PY21427
PY21427-UN-22AUG14

PY16008
PY16008-UN-04JUN12

PY18495
PY18495-UN-22AUG14

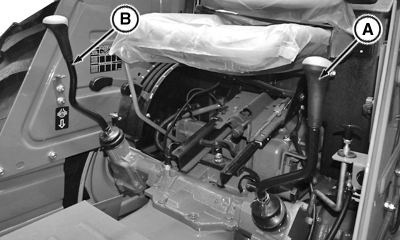

A - Range Shift Lever

B - Gear Shift Lever

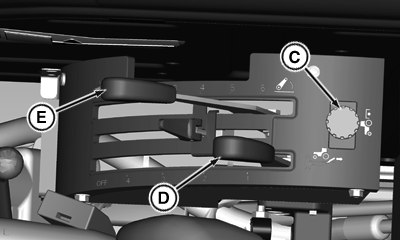

C - PTO Switch

D - Rockshaft Draft Control Lever

E - Rockshaft Position Control Lever

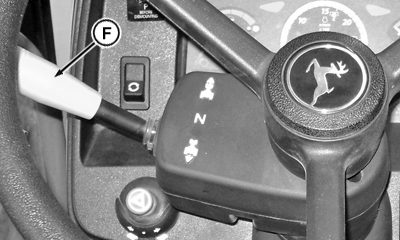

F - FNR Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

  1. Check fuel gauge to be sure tractor has plenty of fuel.

  2. Place gear shift lever (B) in park position and range shift lever (A) in NEUTRAL and PTO Switch (C) in OFF position.

  3. Place rockshaft control levers (D and E) in lowered position.

  4. Place FNR lever (F) in NEUTRAL.

  5. Check indicator lights. Indicators should illuminate when key switch is turned to the ON position.

    If any indicator does not function properly, see your John Deere dealer.

SD74272,00000A7-19-20140813
