Stopping Tractor (OOS — PowrReverser™)

PY18496-UN-22AUG14

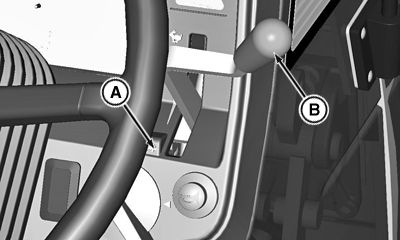

Hand Throttle — OOS

PY18497-UN-22AUG14

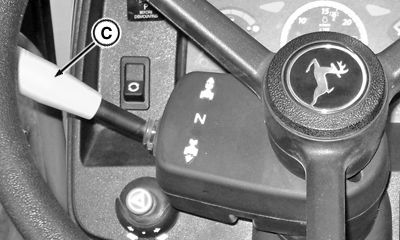

FNR Lever

PY21403-UN-22AUG14

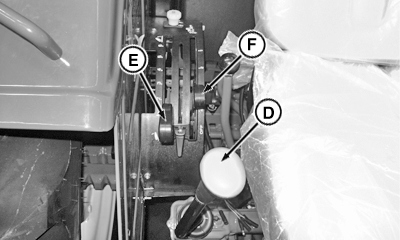

Right Side Controls — OOS

A - Fast/Slow Indicator

B - Hand Throttle

C - PowrReverser™ Lever

D - Gear Shift Lever

E - Position Control Lever

F - Draft Control Lever

1. Stop tractor travel by depressing on clutch pedal first or while using the brakes.

2. Put gear shift lever (D) or PowrReverser™ lever (C) (if equipped) in NEUTRAL before or while using the brakes.

3. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

   Pull hand throttle (B) down to slow idle position. Allow engine to idle for 1—2 minutes.

4. Lower all equipment to ground using position control lever (E and F).

5. Put all SCV levers in NEUTRAL.

6. Disengage PTO.

7. CAUTION: Remove key from ignition switch to prevent operation by untrained personnel.

   Turn key to STOP position and remove from switch.
