Setting Position Control Lever Stop

  1. NOTE: Position control lever stop is used when operating depth or height needs to be repeated often.

    PY16598
    PY16598-UN-22AUG12

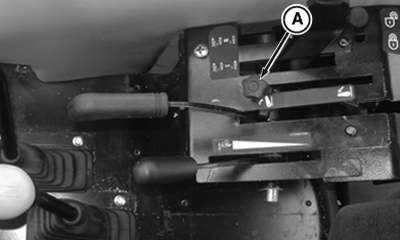

    Cab Shown

    PY16033
    PY16033-UN-07JUN12

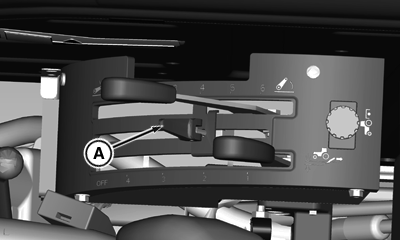

    OOS Shown

    A - Lever Stop

    Operate implement for a few minutes to determine proper depth or height.


  2. Loosen lever stop (A), and slide against position control lever. Lock stop in position by turning in a clockwise direction. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.
