Use Position Control

PY16032-UN-07JUN12

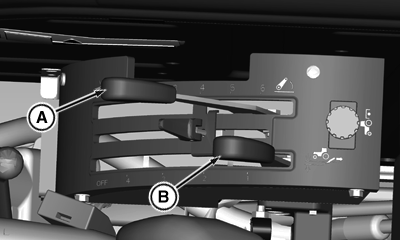

Control Levers of OOS

PY16597-UN-14AUG12

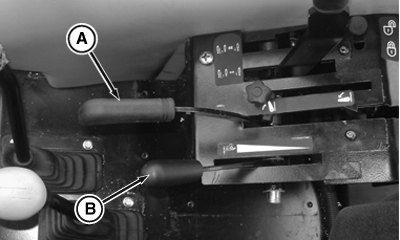

Cab Shown

PY18781-UN-17SEP13

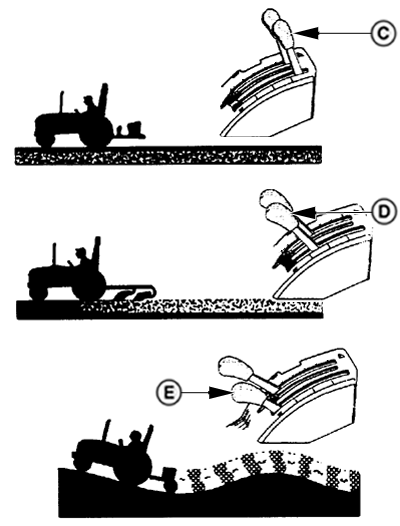

Position Control

A - Position Control Lever

B - Draft Control Lever

C - Position Control Lever in Rearward Position

D - Position Control Lever in Desired Depth Position

E - Position Control Lever and Draft Control Lever in Float Position

CAUTION: To prevent unexpected movement of hitch, move draft control lever (B) fully forward before attaching an implement.

Put draft control lever (B) forward when automatic adjustment of hitch according to draft load IS NOT wanted (for example, when attaching implement to tractor).

Use position control lever (A) to control hitch movement and depth. Position control should be used for the following applications:

TRANSPORT of implements and end of field turn-around. Position control lever should be moved fully rearward (C) for transport for both load and non-load sensing usage.

CONSTANT DEPTH of implements on level terrain and for non-ground engaging implements such as spreaders or sprayers. Place position control lever at depth desired (D).

FLOAT operation for implements with skids or depth gauge wheels designed to carry full implement weight. Push both levers all the way forward (E) so implement can follow the ground contour.

NOTE: Lift links can be adjusted for lateral float. (See Lateral Float in this section.)
