Select Correct PTO Speeds—(If Equipped)

IMPORTANT: Disengage PTO with switch (A) before changing PTO speed with lever (B). NEVER use shiftable PTO lever (B) to engage or disengage PTO.

PY16046-UN-07JUN12

OOS Shown, Cab Similar

PY21434-UN-22AUG14

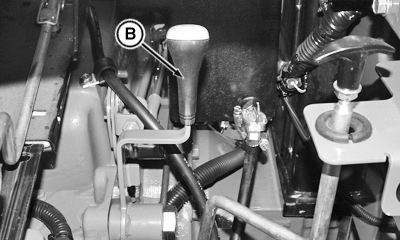

PTO 540/540E Shift lever (OOS)

PY18429-UN-28JUN14

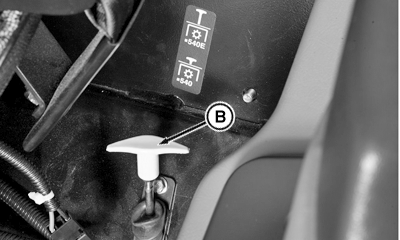

PTO 540/540E Shift lever (Cab)

A - PTO Switch

B - PTO Shift Lever

Standard 540 Operation

No PTO speed selection required. Engage standard 540 PTO with switch (A).

NOTE: Standard 540 rpm power take-off speed is reached at 2376 rpm engine speed.

540/540E Operation

For economy 540 PTO operation (lighter load),

For Cab: Pull lever (B) up for economical 540 operation and push it down for 540 standard operation.

For OOS: Move shift lever (B) forward for economical 540 operation and move shift lever rearward for 540 standard operation.

In economic mode, engine operates at lower rpm to conserve fuel and reduce overall operating noise while still turning PTO shaft at 540 rpm.

NOTE: Economy 540 rpm power take-off speed is reached at 1705 rpm engine speed.
