Operating Tractor PTO — PowrReverser™

PY21435-UN-22AUG14

OOS Shown

A - Hand Throttle Lever

1. NOTE: Engine starts up with PTO switch (engaged), but PTO shaft does not rotate until switch is reset.

   Depress clutch pedal, start engine, and push hand throttle lever (A) forward until tachometer indicates PTO rated speed.

   PTO Rated Speed
   PTO	Engine rpm Speed
   540	2400
   540E	1700

   NOTE: 540E operation not engages if engine speed exceeded.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.


   PY16046-UN-07JUN12

   OOS Only


   PY17987-UN-24MAY13

   Cab Shown


   PY17684-UN-10JAN13

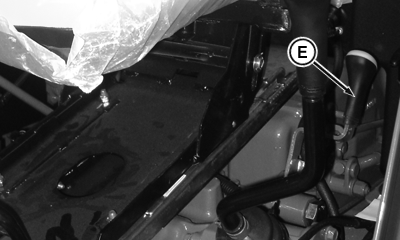

   PTO 540/540E Shift Lever (OOS Shown)


   PY17685-UN-10JAN13

   PTO 540/540E Shift lever (Cab)


   PY17658-UN-30SEP13

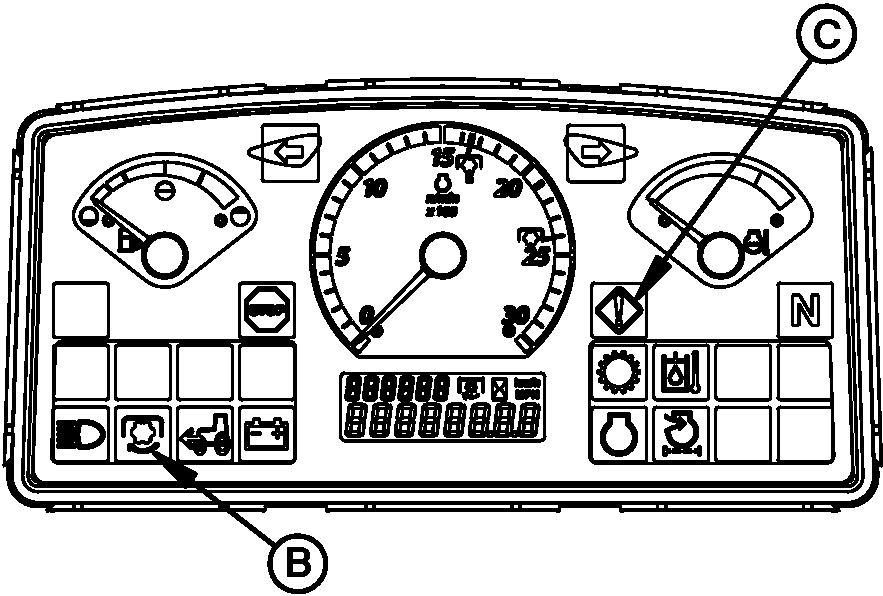

   A - PTO Switch

   B - PTO Indicator Light

   C - Operator Alert Indicator

   D - PTO 540/540E Shift Lever

   E - PTO 540/540E Shift Lever

   Engage PTO:

   Lift switch (A) up to engage PTO.

   PTO indicator (B) illuminate when PTO is engaged.

   NOTE: If operator is NOT on seat when PTO switch is On:

   • OOS: Operator Alert Indicator (C) turn ON
   • Cab:Audible alarm will sound.



   NOTE: If engine is stopped while PTO is engaged, restart engine, depress, and lift switch knob (A) to reset and engage PTO.

---




3. IMPORTANT: Disengage PTO with switch (A) before changing PTO speed with lever (E).

   Disengage PTO:

   Push down PTO switch (A) to disengage PTO.

   PTO brake automatically engages when PTO is disengaged.

   PTO indicator (B) goes off when PTO is disengaged.
