Drain Water and Sediment From Fuel Tank

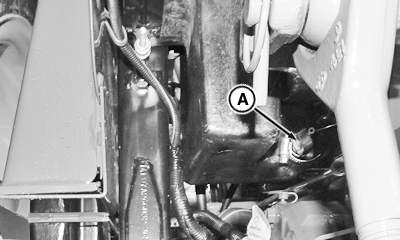

PY21439-UN-22AUG14

OOS Shown

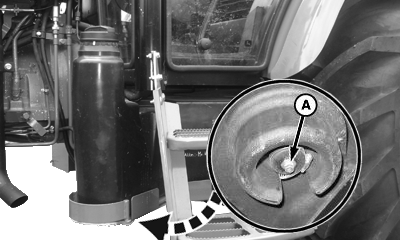

PY16251-UN-18JUL12

Cab Shown

A - Fuel Tank Drain Plug

Service Interval— Daily / 10 Hours

1. Remove filler cap.

2. Place suitable container under drain plug (A).

3. Loosen drain plug to drain moisture and sediment from fuel tank.

4. Tighten drain plug when fuel runs clear.

5. Inspect and thoroughly clean all filler cap vents.

6. Inspect rubber seal for cracks or other imperfections. Replace if necessary

7. Install filler cap.
