Replace Alternator/Fan Belt

1.

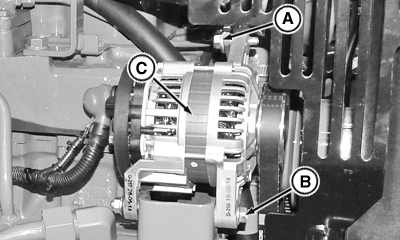

   PY21444-UN-22AUG14

   A - Alternator Cap Screw

   B - Alternator Bolt

   C - Alternator

   Raise hood.

---




2. Loosen cap screw (A) and bolt (B) and rotate the alternator (C) to free the belt.

3. Remove belt from drive pulley.

4. Install new belt in reverse order of removal.

5. Adjust belt tension.
