Charge Battery

TS204
TS204-UN-15APR13

PY21443
PY21443-UN-22AUG14

OOS

PY16256
PY16256-UN-18JUL12

Cab

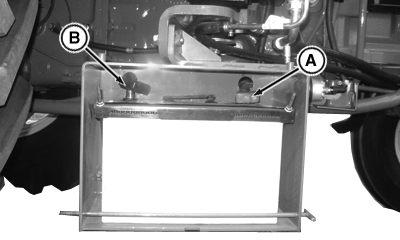

A - Positive (+) Battery Terminal

B - Negative (-) Battery Terminal

CAUTION: Gas given off by battery is explosive. Keep sparks and flames away from battery. Before connecting or disconnecting a battery charger, turn charger off. Make last connection and disconnection at a point away from battery.

  1. With charger off, attach positive battery charger lead to positive (+) battery terminal (A). Attach negative charger lead to tractor frame, away from the battery.

  2. Follow the instructions provided by the charger.

  3. To disconnect battery charger, turn charger off. Remove negative charger lead first, then positive lead.

SD74272,00000DD-19-20141014
