Access Fuses and Relays

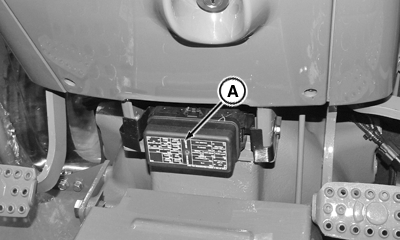

PY21445-UN-22AUG14
Fuse Box Location — OOS

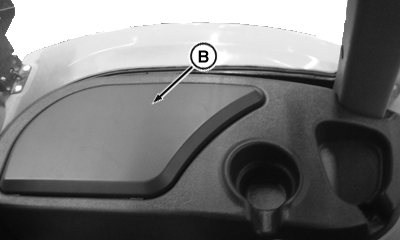

PY16262-UN-19JUL12
Fuse Box Location — Cab
A - Fuse Box Cover (OOS)
B - Fuse Box Cover (Cab)
- OOS — Pinch tabs and pull off cover (A).
- Cab — Pry off cover (B).
To remove fuse box cover:
|
Fuse Rating |
Color |
|---|---|
|
5 Amp |
Orange |
|
10 Amp |
Red |
|
15 Amp |
Blue |
|
20 Amp |
Yellow |
|
30 Amp |
Green |
IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur.
If original size fuse will not carry electrical load and continues to blow contact your John Deere dealer.
|
SD74272,00000E0-19-20141014 |
