Adjusting Rockshaft Rate-of-Drop or Transportation Lock

CAUTION: Excessive rate-of-drop causes damage or injury. At least two seconds requires for fully lowering the implement.

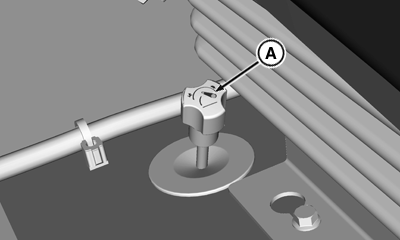

PY16173-UN-10JUN14

Cab

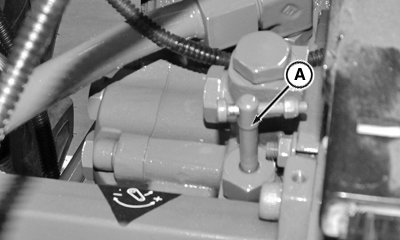

PY21431-UN-22AUG14

OOS

A - Rate-Of-Drop Knob

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob so that it is slow enough to be safe and prevent implement damage.

Turn rate-of-drop knob (A), located under the seat, clockwise to slow rockshaft drop.

Turn knob counterclockwise to increase rate-of-drop.

Rate-of-drop knob is also called implement lock. When knob is fully screw in, implement not lower down even if position-control lever is fully down. Use implement lock while transporting implement.
