Load Center - 1 Fuses and Relays—OOS (PowrReverser™ Transmission)

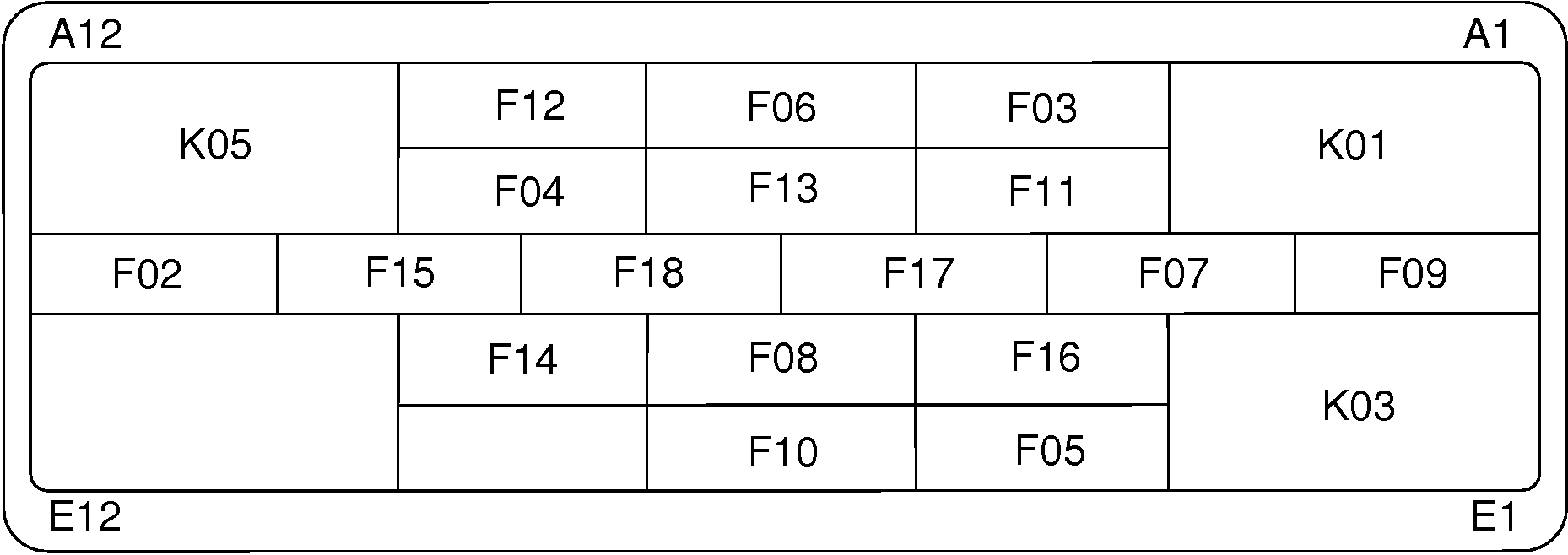

PY21447-UN-19AUG14

F02 - Alternator Fuse, 10 Amp

F03 - Key Switch Fuse, 30 Amp

F04 - Fuel Shutoff Fuse, 10 Amp

F05 - ELX Fuse, 10 Amp

F06 - Light Switch Fuse, 30 Amp

F07 - High Beam Fuse, 15 Amp

F08 - Low Beam Fuse, 15 Amp

F09 - Park Light Fuse, 10 Amp

F10 - Brake Switch Fuse, 15 Amp

F11 - Flasher Fuse, 10 Amp

F12 - Work Lamp Fuse, 20 Amp

F13 - Back Up Alarm Fuse, 10 Amp

F14 - Instrument Cluster Fuse, 20 Amp

F15 - Seat Switch Fuse, 10 Amp

F16 - Vehicle Controller -1, 10 Amp

F17 - Vehicle Controller -2, 10 Amp

F18 - Vehicle Controller -3, 10 Amp

K01 - Neutral Start Relay

K03 - Not Neutral Relay

K05 - EH System Relay
