Warm Hydraulic System Oil

PY21450
PY21450-UN-22AUG14

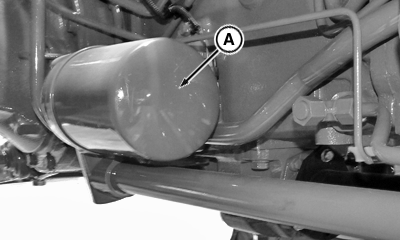

A - Hydraulic Oil Filter

Hydraulic system sometimes functions slow when tractor is started in cold weather. Because of cold, oil not flows easily through the filter screen or hydraulic system filter (A).

Steering slows until system warms up.

Hydraulic system functions normally when oil warms up.

  1. IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed two—three minutes warm up time.

    Depress clutch pedal, start engine and idle at about 1000 rpm.

  2. Turn and hold steering wheel in full left or right turn.

SD74272,0000103-19-20140820
