Use Power Beyond Attachment

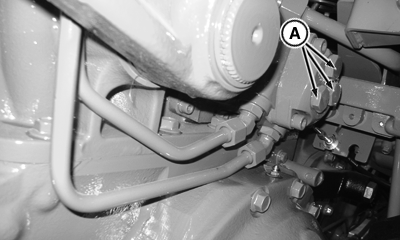

PY16185-UN-26JUN12

Power Beyond in Storage Position

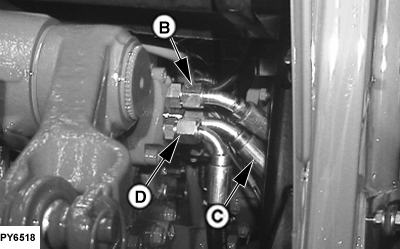

PY6518-UN-09AUG13

A - Plug

B - Excess Oil Return Line

C - Oil Return Line

D - Oil Supply Hose

Power beyond is designed for operations of orbital motors or any application where continuous high volume hydraulic oil flow is needed.

Power beyond is used for auxiliary hydraulic system. When not in use plug power beyond.
