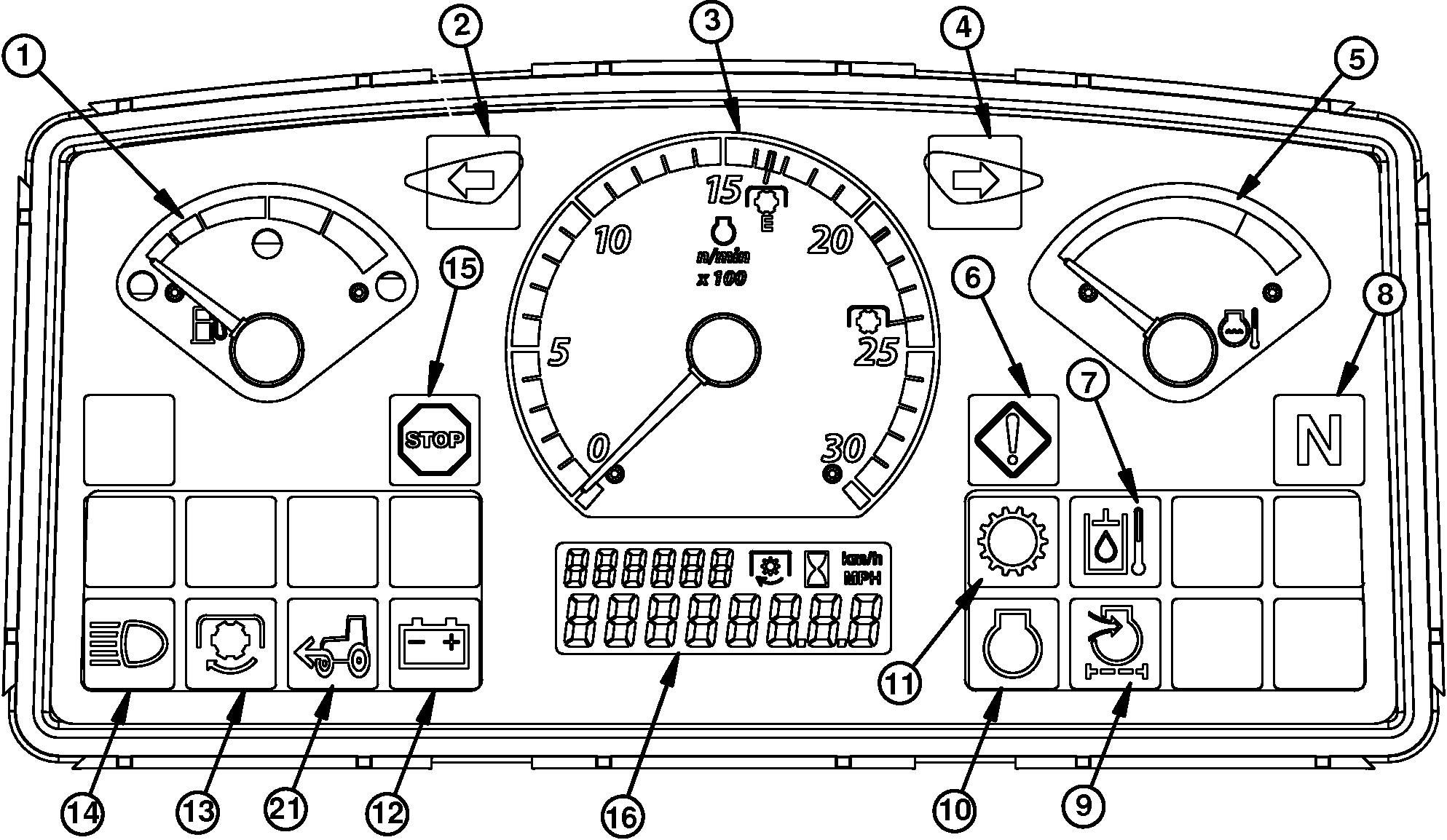

Instrument Panel (PowrReverser™ Tractors)

PY17639-UN-30SEP13

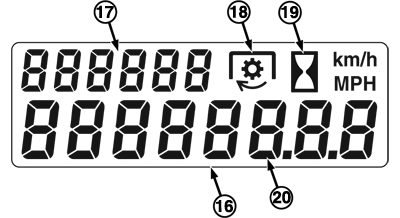

Instrument Panel (PowrReverser Tractors)

PY17640-UN-21DEC12

1 - Fuel Level Gauge

2 - Left Turn Indicator

3 - Tachometer

4 - Right Turn Indicator

5 - Engine Coolant Temperature Gauge

6 - Service Alert Indicator

7 - Hydraulic Oil Temperature

8 - Neutral Indicator

9 - Engine Air Cleaner Restriction Indicator

10 - Engine Information Indicator

11 - Transmission Information Indicator

12 - Battery Charge Indicator

13 - PTO Engaged Indicator

14 - High Beam Indicator

15 - Engine STOP Indicator

16 - Vehicle Information Display

17 - Hour Spent

18 - PTO Icon

19 - Hour Meter Icon

20 - Active PTO Speed and Vehicle Speed

21 - MFWD Engaged Indicator (If Equipped)

NOTE: Hour Meter/Ground Speed (LCD Digital) (19) displays hours when tractor is not moving. When tractor is moving, display switches to ground speed. When tractor is stopped, display changes back to hours.
