Observe Drawbar Load Limitations

Swinging Drawbar (If Equipped)

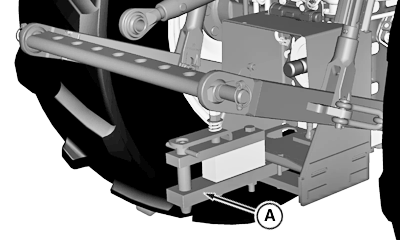

PY21453-UN-16OCT14

Swinging Drawbar

A - Drawbar

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar.

Drive slowly with heavy loads.

Item	Measurement	Specification
Drawbar MAXIMUM Static Vertical Load
Fully Extended Position	Static Vertical Load	760 kg (1675 lb)
Fully Retracted Position	Static Vertical Load	1120 kg (2470 lb)

NOTE: Offset and heavy-duty drawbars are available as an option. See your John Deere dealer for detailed information on optional drawbars.

Fixed Drawbar (If Equipped)

NOTE: FIK Option is available on the fixed type drawbar.

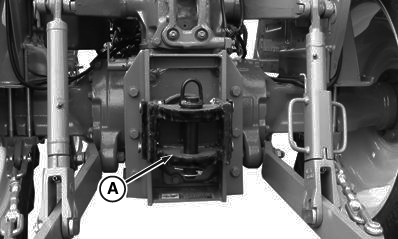

PY13090-UN-21DEC11

Fixed Drawbar

A - Drawbar

IMPORTANT: Certain heavy equipment, such as a loaded single-axle trailer, can place excessive strain on drawbar. Strain is greatly increased by speed and rough ground.

Static vertical load on drawbar should not exceed 556 kg (1225 lb.).

Drive slowly with heavy loads.

Item	Measurement	Specification
Drawbar Static Vertical Load	Capacity	556 kg (1225 lb.) Maximum
