Select Drawbar Position—(If Equipped)

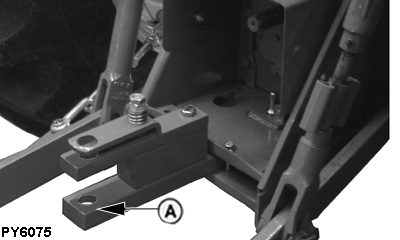

PY6075-UN-02AUG06

Fully Retracted — Swinging Drawbar

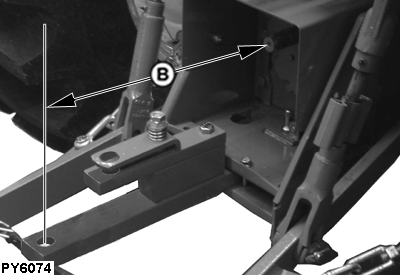

PY6074-UN-29AUG06

Fully Extended — Swinging Drawbar

A - Drawbar

B - Distance

For maximum traction and efficiency, drawbar (A) must be positioned in center, fully retracted position. (See implement operator's manual for more information.)

If needed, offset the drawbar from center using slots provided in the drawbar support.

IMPORTANT: For drawn PTO-driven implements, drawbar must be extended to proper position.

Drawbar Positions
PTO Shaft	PTO Shaft End-to-Hitch Pin Hole (B)
540 rpm (6 spline)	356 mm (14 in)
1000 rpm (21 spline)	407 mm (16 in)
