Adjust Drawbar Length and Offset—(If Equipped)

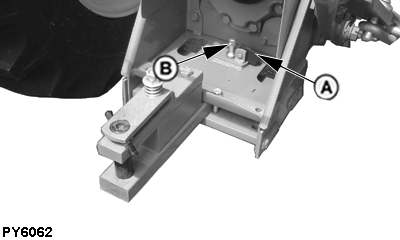

  1. PY6062
    PY6062-UN-01AUG06

    A - Retaining Latch

    B - Drawbar Pin

    Lift retaining latch (A).


  2. Remove drawbar pin (B).

  3. Slide drawbar to desired position.

    If moving from center to offset position, remove drawbar and slide through offset slots in support.

  4. Install drawbar pin (B) and rotate the retaining latch (A), to retain in place.

SD74272,000010C-19-20200318
