Observe Engine Operation Closely

PY17648-UN-14OCT13

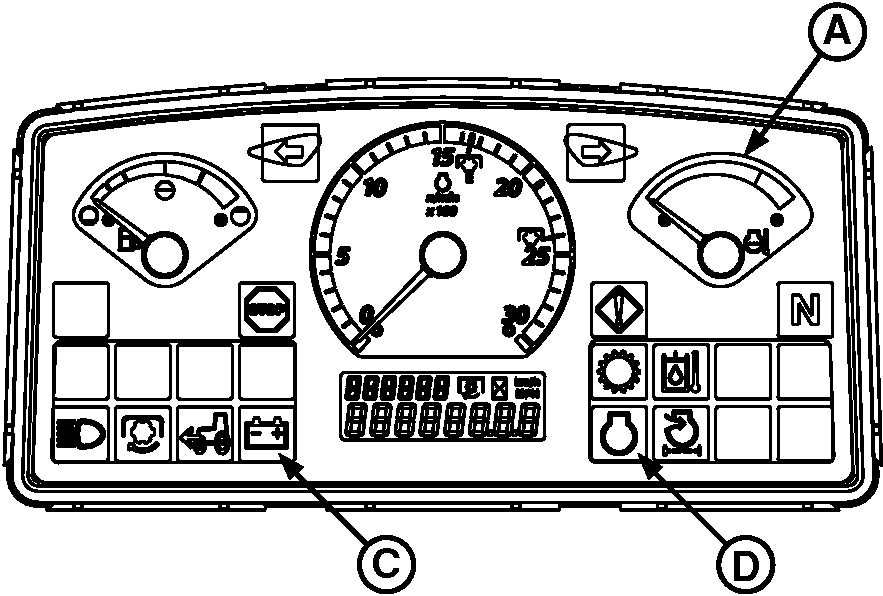

Observe Engine Operation (PowrReverser™ )

PY17649-UN-16DEC14

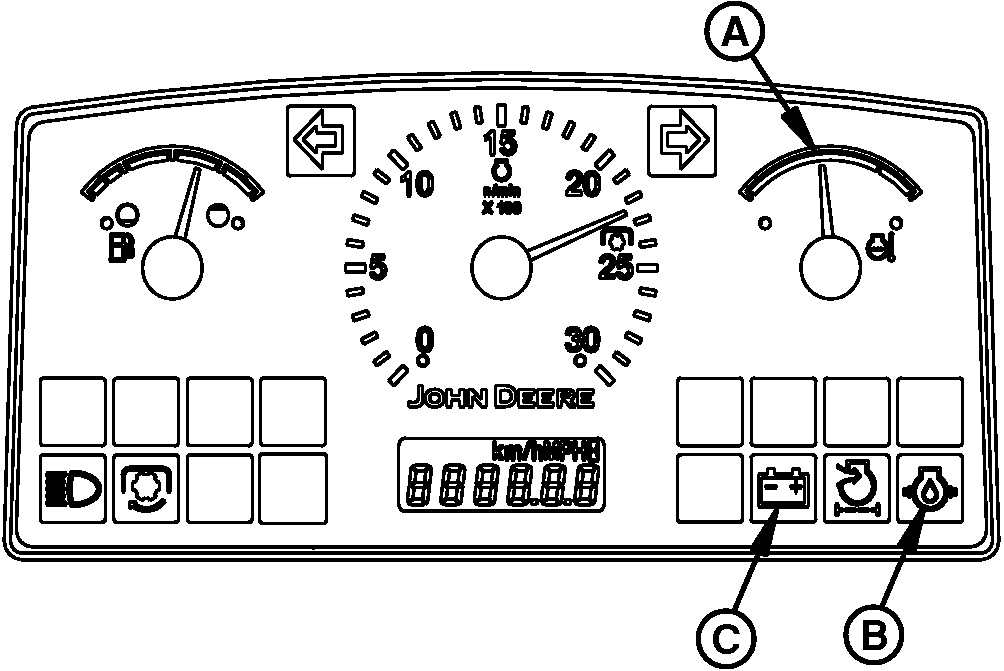

Observe Engine Operation (Sync Shuttle)

A - Coolant Temperature Gauge

B - Oil Pressure Indicator

C - Battery Charging Indicator

D - Engine Information Indicator

IMPORTANT: The engine is ready for normal operation. Be extra cautious during the first 100 hours, until you become thoroughly familiar with the sound and feel of your new tractor. Stay extra attentive and alert.

Warm up tractor carefully. Check battery charging (C), oil pressure (B) and engine information (D) warning indicator lights and coolant temperature gauge (A).

Avoid unnecessary engine idling.

Check engine oil, coolant, transmission/hydraulic and fluid levels frequently. Watch for fluid leaks.

NOTE: If engine oil must be added, use seasonal viscosity grade oil. Use only lubricants meeting specifications given in the Fuels, Lubricants, and Coolant section.
