Tractor Controls — Right Hand Panel (Cab)

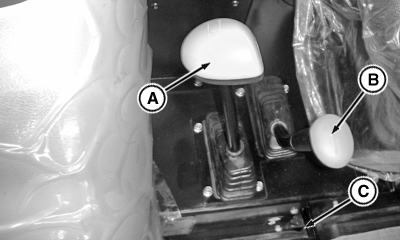

PY18269-UN-13OCT14

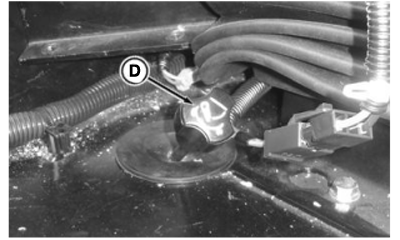

PY18959-UN-21MAY14

Rate-Of-Drop Knob - Rear Side of Seat

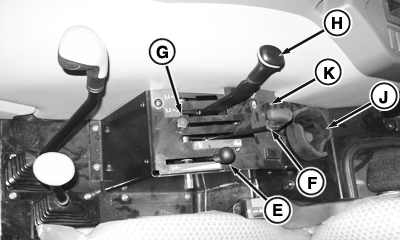

PY18958-UN-21MAY14

Right Side Controls

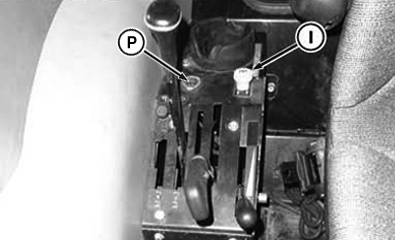

PY18977-UN-12DEC14

Electro-Hydraulic PTO Switch

A - Gear Shift Lever

B - Range Shift Lever

C - Differential Lock Pedal

D - Rockshaft Rate-Of-Drop Knob

E - Draft Control Lever

F - Position Control Lever

G - Position Control Stop Knob

H - SCV I Lever

I - Electro-Hydraulic PTO Switch (Only For PowrReverser™ Transmission)

J - Water Bottle Holder

K - SCV Lever Lock

P - 12-Volt Accessory Electrical Outlet
