Use Turn Signals

PY15572-UN-03AUG12

Turn Signal Switch

PY15575-UN-06AUG12

Front Turn Signal Lights

PY15573-UN-29AUG12

Back Turn Signal Lights

PY17646-UN-16DEC14

Sync Shuttle

PY17647-UN-30SEP13

PowrReverser

A - Turn Signal Switch

B - Front Turn Signal Light

C - Rear Turn Signal Lights

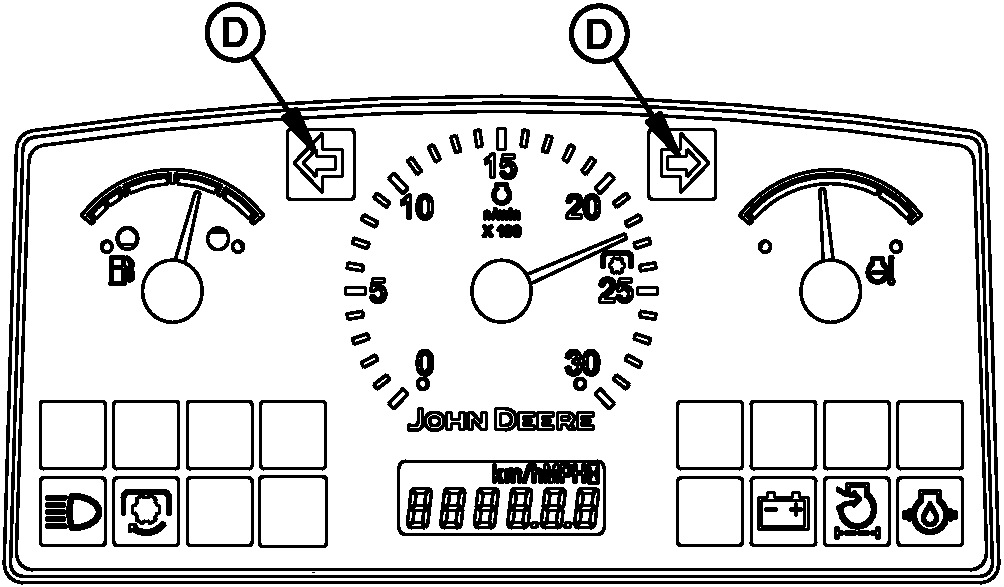

D - Turn Signal Indicators

Move turn signal switch (A) left to indicate left-hand turn or right for right-hand turn. Indicator lights (D) will flash to signal turn direction.

When switch is in right side position, front and rear turn lights on right-hand side will flash. When switch is in left side position, front and rear turn lights on left-hand side will flash.

NOTE: Be sure to manually return switch to center position after turning.
