Before Starting the Engine –– Cab

TS220-UN-15APR13

PY16279-UN-10SEP12

PY18278-UN-14AUG13

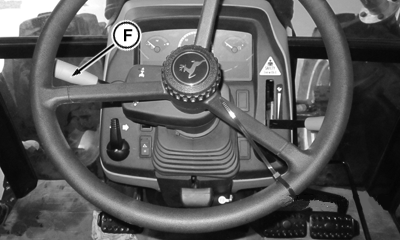

Forward-Reverse Lever (PowrReverser™)

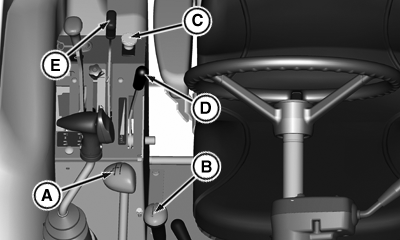

A - Gear Shift Lever

B - Range Shift Lever

C - PTO Switch

D - Draft Control Lever

E - Position Control Lever

F - Forward-Reverse Lever

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

Always operate the engine in an area with proper ventilation.

Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

1. Check fuel gauge to be sure that tractor has enough fuel.

2. Place forward-reverse lever (F) in NEUTRAL Position.

3. Place gearshift lever (A) in PARK position and range shift lever (B) in NEUTRAL and PTO switch (C) in OFF position.

4. Place draft control lever (D) and position control lever (E) in lowered position.

5. Check indicator lights. Indicators must illuminate when the key switch is turned to the ON position.

   If any indicator does not function properly, see nearest John Deere dealer.
