Stopping the Engine—PowrReverser™

1.

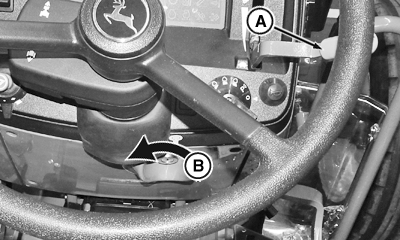

   PY21429-UN-22AUG14

   OOS Shown

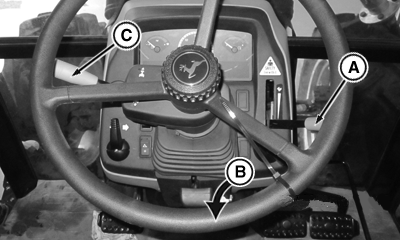

   PY18282-UN-14AUG13

   Cab Shown


   PY18497-UN-22AUG14

   FNR Lever — OOS Shown, Cab Similar

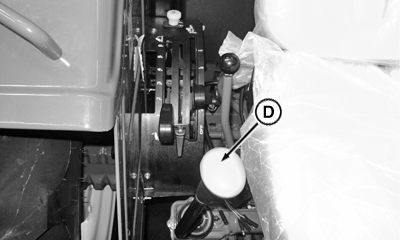

   PY18498-UN-22AUG14

   Right Side Controls — OOS

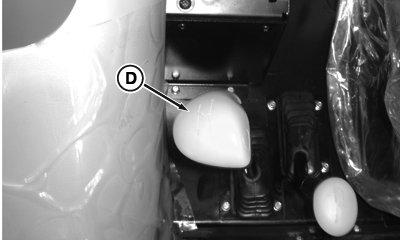

   PY18780-UN-16SEP13

   Right Side Controls — Cab

   A - Hand Throttle

   B - Key Switch OFF

   C - FNR Lever

   D - Gear Shift Lever

   Pull hand throttle (A) back to slow idle position.

---




2. Put gearshift lever (D) or FNR lever (C) in NEUTRAL.

3. Push gearshift lever (D) to Park position (P)

4. Lower all equipment to the ground, put all SCV levers in NEUTRAL and disengage PTO.

5. Allow engine to idle for one—two minutes.

6. IMPORTANT: Engine oil Cools of certain engine parts. Stopping a hot engine suddenly damage these engine parts by overheating or lack of lubrication.

   Turn key switch to the OFF position (B).

   CAUTION: Remove key from key switch prevent from operation by untrained personnel.
