Operating Tractor PTO — Sync Shuttle, Cab

PY16163-UN-25JUN12

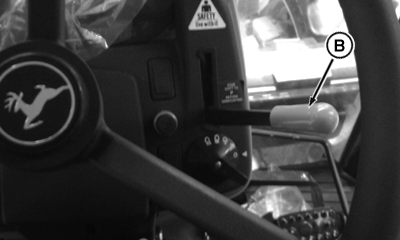

B - Hand Throttle Lever

NOTE: Engine will not start if PTO control lever is engaged.

1. Depress clutch pedal, start engine and push hand throttle lever (B) forward until engine tachometer indicates PTO rated speed of 2376 rpm.


   PY16190-UN-04SEP12


   PY16191-UN-16DEC14

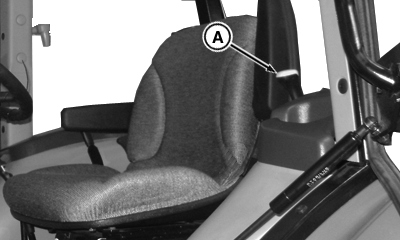

   A - PTO Lever

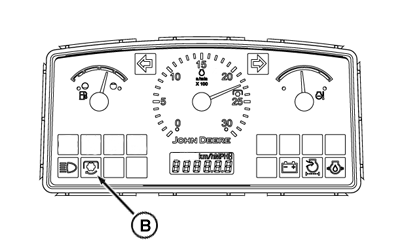

   B - PTO Indicator Light

   Move PTO lever (A) forward, to engage PTO. Indicator light (B) will turn on when PTO is engaged.

---




2. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO-driven implement.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   Pull the PTO lever back to disengage PTO.
