Check Neutral Start System — SyncShuttle Transmission (If Equipped)

PY15602-UN-20AUG13

PY21467-UN-16OCT14

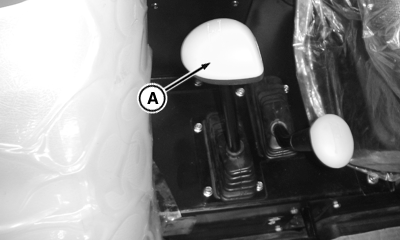

A - Gearshift Lever

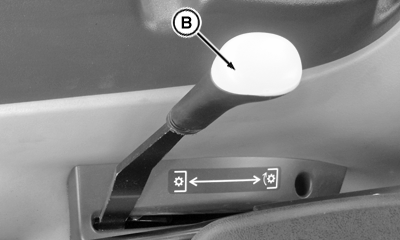

B - PTO Lever

Your John Deere tractor is equipped with interlocks to prevent inadvertent movement when the engine is started. Turning the key switch with the clutch pedal depressed should crank the engine if all of the following conditions exist:

• Gearshift lever (A) in NEUTRAL
• PTO lever (B) in disengaged position

CAUTION: If starter turns engine in any of the following steps, have the neutral start system repaired by your John Deere dealer.

Turning the key switch to the start position should NOT start the engine, if either of the following exist:

• Gearshift lever (A) in gear (not in NEUTRAL position)
• PTO lever (B) in engaged position
