Clean Transmission-Hydraulic Pickup Screen

Service Interval—1200 Hours

  1. PY21411
    PY21411-UN-22AUG14

    PowrReverser™

    PY16232
    PY16232-UN-17JUL12

    Sync Shuttle

    A - Cap Screws

    B - Screen Cover

    Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

    NOTE: The approximate transmission case oil capacity for Sync Shuttle is 38 L (10 gal) and for PowrReverser™ is 43.5 L (11.54 gal).

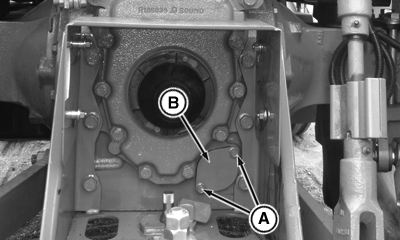

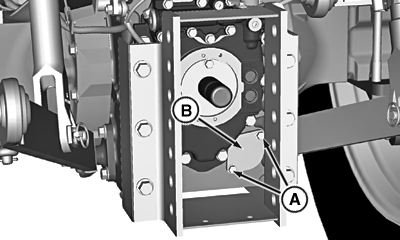

  2. Remove two cap screws (A) and remove screen cover (B).

  3. Remove screen and examine it for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

  4. Carefully install screen so the front of screen is inserted in hole at front of differential case.

  5. Fill system with transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

  6. PY16056
    PY16056-UN-20DEC12

    D - Transmission - Hydraulic Oil Dipstick

    Check oil level at dipstick (D) or at sight glass (If equipped) after filling, and again after operating for five minutes.
