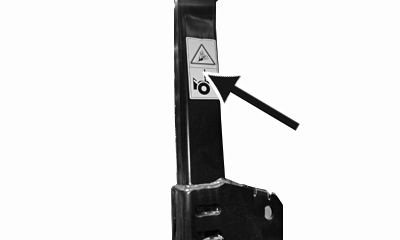

ROPS in Normal Position (Applicable if tractor is equipped with ROPS)

PY21422-UN-10DEC14

On Right Side of ROPS—OOS

PY15860-UN-23SEP13

CAUTION: Avoid crushing injury or death during rollover.

Use Foldable ROPS and Seat Belt Properly.

If this machine is equipped with a foldable rollover protective structure (ROPS), keep the ROPS in the fully extended and locked position.

USE a seat belt when you operate with a ROPS in the fully extended position.

• Hold the latch and pull the seat belt across the body.
• Insert the latch into the buckle. Listen for a click.
• Tug on the seat belt to make sure that the belt is securely fastened
• Snug the seat belt across the hips.

If this machine is operated with the ROPS folded (e.g: to enter a low building.), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded.

Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.
