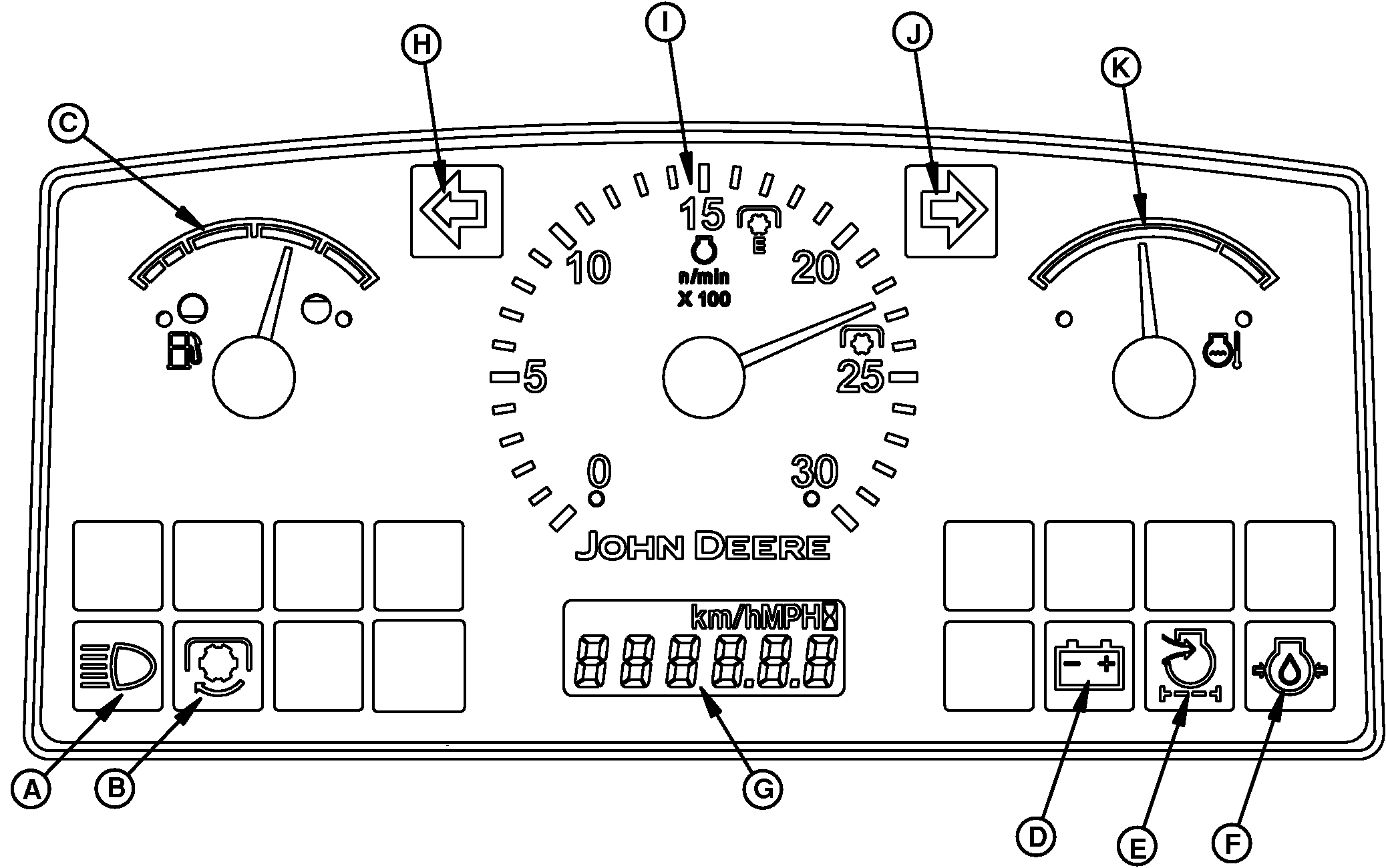

Instrument Panel — (SyncShuttle Transmission)

PY22907-UN-12DEC14

Instrument Panel (SyncShuttle Transmission)

PY21454-UN-11DEC14

A - High Beam Indicator

B - PTO Engaged Indicator

C - Coolant Temperature Gauge

D - Battery Charge Indicator

E - Engine Air Cleaner Restriction Indicator

F - Engine Oil Pressure Indicator

G - Information Display

H - Left Turn Indicator

I - Tachometer

J - Right Turn Indicator

K - Fuel Gauge

Q - Vehicle Information Display

S - Hour Meter Icon
