Hydraulic Trailer Brake Provision (If Equipped)

1. NOTE: Below information is applicable only for trailer brake valve supplied by Trailer Manufacturer.

   IMPORTANT: Brake line Pressure available at port (B) (adapter) rear end is unregulated. The trailer brake valve’s pressure relief shall not exceed 205+/-5 bar and shall not impact the tractor’s hydraulic system specification when trailer brakes are not actuated. If pressure exceeds the recommended level it will result in damage to Tractor system.

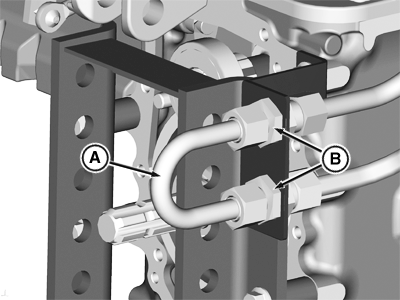

   PY21505-UN-30JUL14


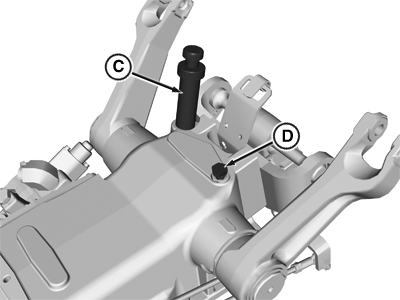

   PY21506-UN-30JUL14

   A - U Pipe

   B - Adapter (2 Used)

   C - Oil Dipstick

   D - Oil line port

   Remove U Pipe (A) from trailer brake valve adapter (B)

---




2. Connect trailer brake pressure hose to the connecting port (B), making sure that all connections are clean & fixed properly.

   NOTE: Thread size for connector pressure & Carry Over Port to connect the brake valve Hoses to KIT is 1-3/16-12 UN.

3. Oil line port (D) is given for connecting trailer bake valve tank line to transmission housing near oil filler port (C).

   NOTE: M18x1.5mm size fitting has to be used for routing.

4. Depress brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.
