Adjust PTO Clutch Operating Cable

PY16190-UN-04SEP12

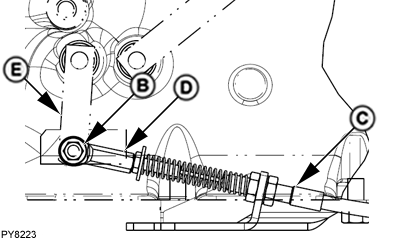

PTO Control Lever — SyncShuttle™ , Cab

PY8223-UN-06MAR08

A - PTO Lever

B - Spring Lock Screw

C - Cable

D - Yoke

E - PTO Lever Linkage

1. Push PTO Lever (A) to down (disengaged) position.

2. Remove spring lock screw (B).

3. Rotate PTO lever linkage (E) anti-clockwise until free play is removed (slight resistance encountered).

4. Adjust yoke (D) until spring lock screw can be installed through yoke (D) and PTO lever linkage (E).

5. Install spring lock screw (B) through yoke (D) and PTO lever linkage (E).
