Stop Tractor (Cab — PowrReverser™)

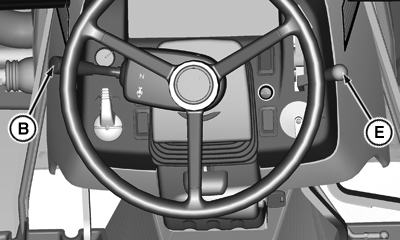

PY16276
PY16276-UN-24JUL12

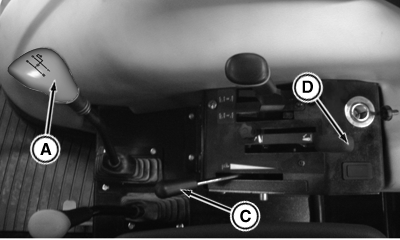

PY16162
PY16162-UN-11SEP12

A - Gear Shift Lever

B - PowrReverser™ Lever

C - Draft Control Lever

D - Position Control Lever

E - Hand Throttle

  1. STOP tractor travel by depressing clutch pedal first or while using the brakes.

  2. Put gearshift lever (A) or PowrReverser lever (B) (if equipped) in NEUTRAL before or while using the brakes.

  3. IMPORTANT: Cooling of some engine parts is provided by engine oil. Stopping a hot engine suddenly can damage to these parts by overheating or lack of lubrication.

    Pull hand throttle (E) down to low idle position. Allow engine to idle for 1—2 minutes.

  4. Lower all equipment to ground using position control lever (D).

  5. Put all SCV levers in NEUTRAL.

  6. Disengage PTO.

  7. CAUTION: To prevent operation by untrained personnel, remove key from ignition switch.

    Turn key to STOP position and remove from switch.

SD74272,0000239-19-20200317
